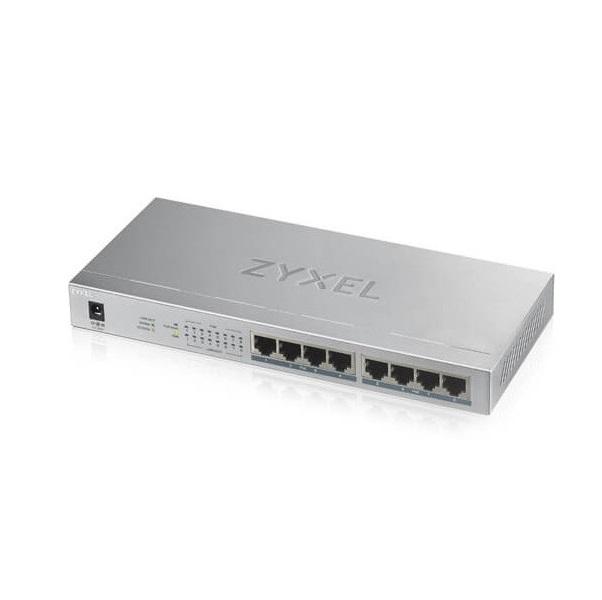

8-port GbE Unmanaged PoE Switch ZyXEL GS1008-HP
- 8-port GbE Unmanaged PoE Switch ZyXEL GS1008-HP is equipped with 8 Gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1008-HP can easily connect with PoE ready devices to your network with plug-and-play design and provides power-saving benefits without compromising performance. The GS1008-HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, have a high power budget and are affordable for SOHOs and small businesses.
- GS1008-HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.
Standard Compliance
- IEEE 802.3 10BASE-TX Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- ANSI/IEEE 802.3 NWay Autonegotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
- IEEE 802.3az Energy Efficient Ethernet (EEE)
Features
- Compatible With PoE/PoE+ IEEE 802.3 af/at Compliant PDs
- Auto-MDI/MDIX in all ports
- Transmission method: Store-and-forward architecture
- Fanless Design
- Auto sense PoE device
LED Indicator
- PWR: Power
- Per port: Link/Activity
+ Amber: 10/100 Mbps
+ Green: 1000 Mbps
- PoE
- PoE MAX
Specifications
| Model | GS1008-HP |
| Port Density | |
| Total port count | 8 |
| 1000BASE-T | 0 |
| 1000BASE-T PoE | 8 |
| PoE | |
| High Power PoE 802.3at | Yes |
| Total PoE budget (watts) | 60 |
| PoE Ports | 8 |
| Performance | |
| Switching capacity | 16 Gbps |
| Memory buffer | 192 KB |
| MAC address | 4 K |
| Jumbo frame | 9 KB |
| LED | |
| Power | Yes |
| Per port | Yes |
| PoE power status | Yes (Max) |
| Power | |
| Input voltage | 55 V/1.3 A |
| Power supply | External |
| Maximum power consumption (watt) | 72 |
| Physical Specifications | |
| Dimensions (WxDxH) | 240x 105 x 26 mm |
| Weight | 610 g |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C/32°F to 104°F |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -40°C to 70°C/-40°F to 158°F |
| Storage Humidity | 10% to 90% (non-condensing) |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
