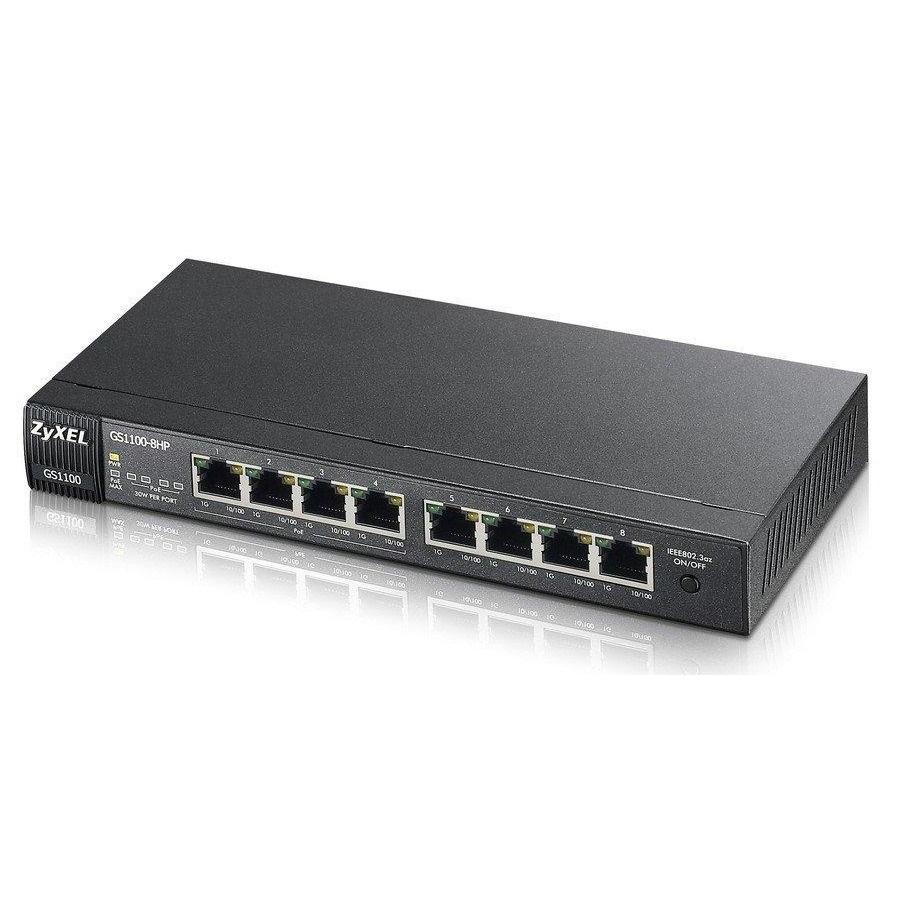

8-port GbE Unmanaged PoE Switch ZyXEL GS1100-8HP
- The ZyXEL GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications.
- The GS1100-8HP is an 8-port Gigabit switch that complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard, providing 4 PoE ports with up to 30 watts per port.
- The power supply of up to 30 watts per port allows the GS1100-8HP to power PoE-enabled WLAN APs, VoIP phones and IP surveillance cameras through CAT-5 cables of less than 100 meters (300 feet) in length. With the ZyXEL GS1100-8HP, there is no need for extra power adapters in installing PoE devices in difficult locations. This feature helps enterprises reduce installation time and cost when there are many such devices on the network.
Specifications
| Model | GS1100-8HP |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Switching capacity: 16 Gbps |
| Forwarding performance: 11.9 Mpps | |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 8K entries |
| Status Indicators | Port status, link activity, power, PoE |
| Subcategory | network hubs and switches |
| Form Factor | desktop, wall-mountable |
| Type | Switch |
| Features | 256KB packet buffer, Broadcast Storm Control, Class of Service (CoS), Energy Efficient Ethernet, VLAN support, auto-negotiation, auto-uplink (auto MDI/MDI-X), fanless, flow control |
| Compliant Standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Power Consumption Operational | 90W |
| Input Voltage | 54VDC, 1.66A |
| Storage Temperature | -40°C to 70°C |
| Operating Temperature | 0°C to 50°C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions | 210 x 104 x 27 mm |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
