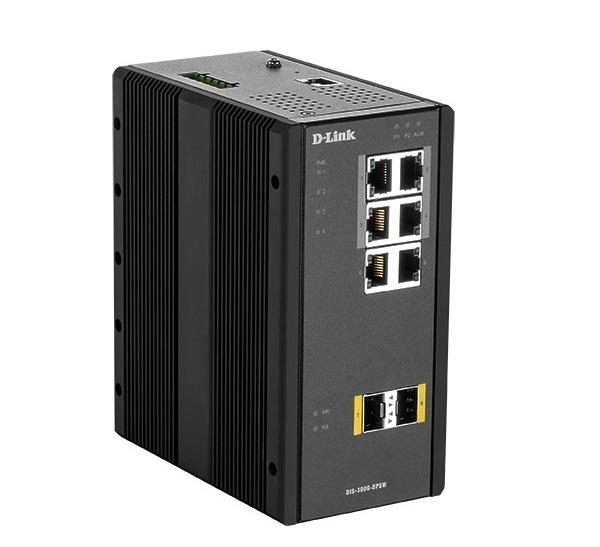

8-port Gigabit Layer 2 Managed Industrial PoE Switch D-Link DIS-300G-8PSW
- 4 x 10/100/1000 BASE-T PoE ports
- 2 x 10/100/1000 BASE-T ports
- 2 x SFP ports
- 1 x RJ-45 Console port
- High redundancy features to provide industrial-grade reliability:
o Dual power inputs
o Ring Protection with <20ms
- Resistant to temperatures between -40 and 75°C
- Power external devices with Power over Ethernet (IEEE 802.3af/at) for simpler installations
- Shock and vibration resistance further boost resilience to outside conditions
- IP30-rated ingress protection provides defense against small objects entering the switch
- Reverse Polarity Protection prevents damage in case of accidental incorrect wiring setup
- Overload Current Protection prevents damage from unexpected power surges
- Quality of Service (QoS) prioritizes network traffic, minimizing the impact of busy bandwidth
- Fanless design for silent operation
- DIN rail or wall mountable
Specifications
| Model | DIS-300G-8PSW |
| Interfaces | |
| Hardware Version | A1 |
| Number of Ports | 4 x 10/100/1000BASE-T PoE ports 2 x 10/100/1000BASE-T ports 2 x SFP ports 1 x RJ-45 Console port |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3z for Gigabit fiber IEEE 802.3af/at Power over Ethernet IEEE 802.3az-compliant |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all twisted pair ports |
| Performance | |
| Switching Capacity | 16 Gbps |
| Max. Forwarding Rate | 11.9 Mpps |
| MAC Address Table Size | Up to 8K entries |
| Transmission Method | Store-and-forward |
| PoE | |
| PoE Standards | IEEE 802.3af/at |
| PoE Capable Ports | Ports 1 to 4 |
| PoE Power Budget | Max. 120 W |
| Physical | |
| Power input | 54-58 V DC (802.3at PoE+) 48-58 V DC (802.3af PoE) 12-48 V DC (non-PoE) |
| Power Consumption | Max. 14 W without PD connected Max. 145 W with 120 W PSE power delivered |
| Alarm Relay | 0.5A at 24 V |
| Heat Dissipation | 494.76 BTU/hr (PoE on) 47.77 BTU/hr (PoE off) |
| Dimensions (W x D x H) | 77 x 154 x 128 mm |
| Weight | 1.31 kg |
| Ventilation | Fanless |
| Operating Temperature | -40 to 75 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Installation | DIN rail/wall mountable |
| Materia | IP30-rated metal casing |
- Bảo hành: 36 tháng.
