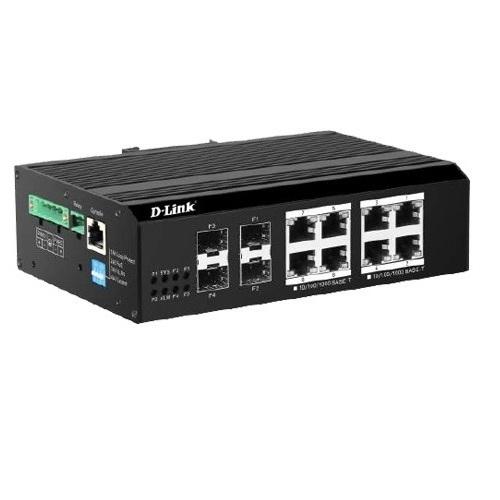

8-port Layer 2 Gigabit Industrial PoE Switch D-Link DIS-F2012PS-E
- 8 Gigabit PoE LAN ports with 4 SFP slot for high-speed wired connections
- Support up to 250 meters PoE and Data transmission
- Support 802.3af/at up to 30W per port
- Layer 2 switch features
- DIN-Rail or wall-mount installation
- IP40 rated
- -40°C to 75°C wide operating temperature
- High EMC endurance
- 6KV surge protection
- Dual power input for backup
Specifications
| Model | DIS-F2012PS-E |
| Interfaces | |
| Number of Ports | 8 x 10/100/1000 Base-T ports 4 x SFP ports 1 x RJ-45 Console Port |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3z for Gigabit fiber IEEE 802.3af/at Power over Ethernet IEEE 802.3az-compliant |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all twisted pair ports |
| Performance | |
| Switching Capacity | 24 Gbps |
| Max. Forwarding Rate | 17.85 Mpps |
| MAC Address Table Size | Up to 8K entries |
| Transmission Method | Store-and-forward |
| PoE | |
| PoE Standards | IEEE 802.3af/at |
| PoE Capable Ports | Ports 1 to 8 (Up to 250m) |
| PoE Power Budget | Max. 240W |
| Physical | |
| Power input | 48 to 54 V DC terminal block dual input 54 V DC 4-pin DIN single power input |
| Power Consumption | Maximum: 250 W (PoE on) Maximum: 10 W (PoE off) |
| Heat Dissipation | 25.37 BTU/hr |
| Dimensions (W x D x H) | 163 x 46.5 x 110 mm |
| Weight | 1 kg |
| Ventilation | Fanless |
| Operating Temperature | -40 to 75 °C |
| Storage Temperature | -40 to 75 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Installation | DIN rail/wall |
| Materia | IP40-rated metal casing |
- Bảo hành: 36 tháng.
