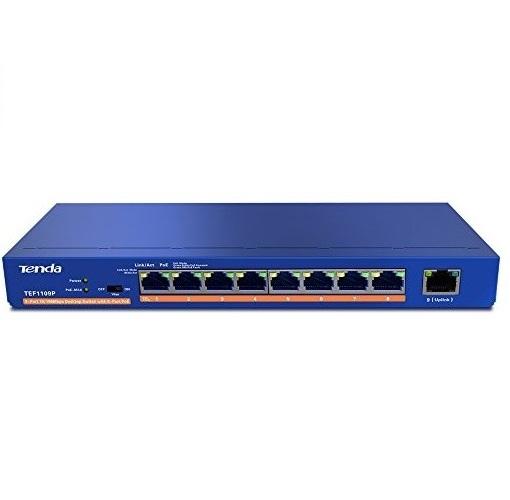

9-port 10/100Mbps + 8-port PoE Switch TENDA TEF1109P
-9-port 10/100Mbps với 8 cổng PoE, chuẩn IEEE 802.3af, at.
-Hỗ trợ cung cấp nguồn cho cổng PoE lên 40W.
-Vỏ sắt.
-9 port 10/100 Base-TX RJ45 ports.
-Up to 8 ports of IEEE 802.3af/802.3at devices powered;
-58-watt PoE budget.
-Each port supports 51VDC power to PoE Powered Device.
-6KV lightning protection.
-Extend Ethernet mode with 250 m transmission distance.
-Plug and play design, no configuration required.
Đặc tính kỹ thuật
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3, IEEE 802.3af, IEEE 802.3at |
| MTBF | ≥50,000 hours (about 5 years) |
| Indicators | Link/Act, PoE Status, Power, 100M |
| Interfaces | Fixed Ports: 8 port10/100Base-TX RJ45 Ports (Data/Power). 1 port 10/100Base-TX RJ45 Port (Data). Lightning protection: 6KV |
| Capacity | Wire-speed forwarding |
| Switching capacity | 1.8 Gbit/s |
| Mac Address Table | 4K MAC |
| PoE Supply | Port 1 to Port 8 support standard IEEE802.3at/af power (maximum power for each port is 30W), PoE power type is end-span (1245+, 3678- line pair). |
| In full configuration: <63W | |
| PoE Max Power Supply: 58W | |
| Dimensions | 177.5 x 104 x 26mm |
| Input Voltage | AC: 100－240V ~ 50/60Hz |
| DC: 51V /1.25A (Power Adapter) |
-Bảo hành: 36 tháng.
