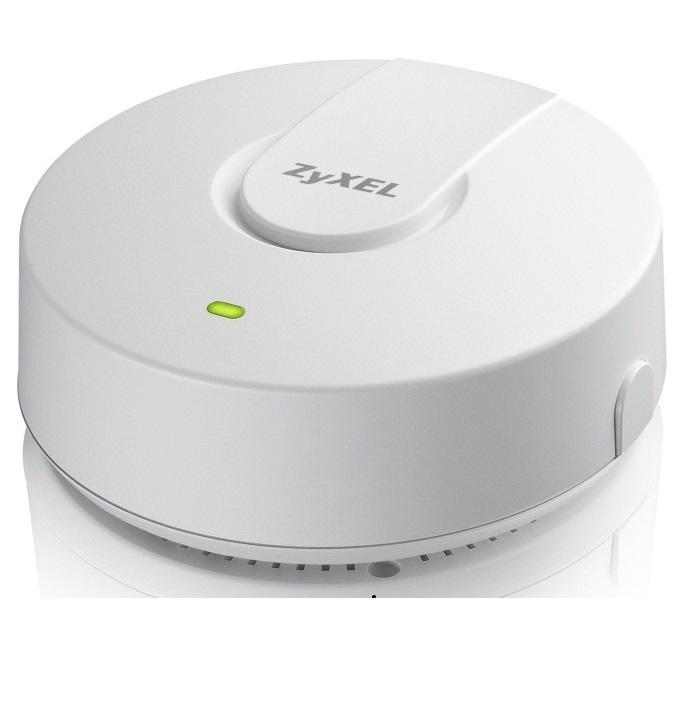

Access Point Dual-Radio ZyXEL NWA5123-AC
- The Zyxel NWA5120 Series 802.11n/ac Unified Access Point is a highly future-proof WLAN solution perfect for growing business, hospitality and education environments. With a 2-in-1 standalone/managed AP design, users can initially use it as a standalone AP, and convert it to a controller-managed AP when Wi-Fi demand grows.
- Enterprise class 2x2 802.11ac access point with data rates of up to 1200Mbps.
- Includes Zero-touch AP mode changing and Automatic IP configuration functions.
- ZyXEL Wireless Optimiser (ZWO) provides powerful tool for management.
- Includes intra-BSS blocking and ZyMesh proprietary protocol.
- Layer-2 isolation protects private networks among client users.
- Comes supplied with the ZyXEL One Network (ZON) utility.
- 2-in-1 standalone/managed access point design.
- Includes embedded antennas and signal output.
Specifications
| Model | NWA5123-AC |
| RF | |
| Wireless frequency | 2.4 GHz & 5 GHz |
| Radio | 2 |
| Antenna | Embedded 2 x 2 3dBi/4dBi antenna |
| LAN | |
| Ports | 1 x 10/100/1000 Mbps |
| PoE | Yes |
| PoE power draw | 9W |
| Network | |
| Max number of configured SSIDs | 16 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features | DHCP client, MAC address filtering, Multiple SSID support, Quality of Service (QoS), VLAN support, Wi-Fi Multimedia (WMM) support, ZyXEL One Network (ZON), plenum-rated, rogue access point detection |
| Wireless Protocol | 802.11a/b/g/n/ac |
| Remote Management Protocol | CLI |
| Data Transfer Rate | 1200 Mbps |
| Spread Spectrum Method | DSSS |
| Encryption Algorithm | TLS, PEAP, TTLS, WPA2, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP |
| Authentication Method | RADIUS, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP), EAP-FAST |
| General | |
| Power Supply | 12 VDC, 1A |
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | 0°C to 50°C |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
