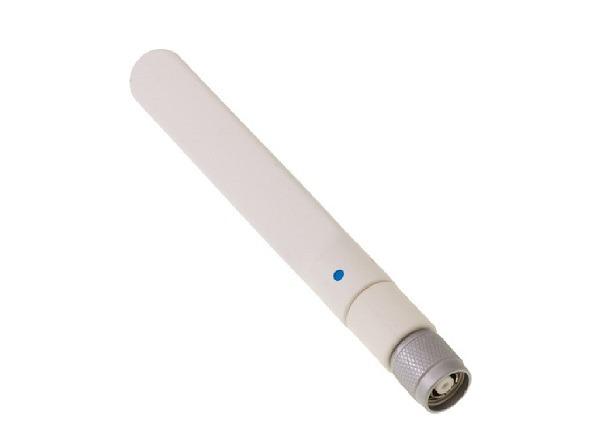

Articulated Dipole Antenna Cisco AIR-ANT5135DW-R=
- The antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet 5-GHz radio products using an RP-TNC connector.
Specification
| Antenna type | Dipole |
| Operating frequency range | 5150 – 5850 MHz |
| Nominal input impedance | 50 Ohms |
| 2:1 VSWR bandwidth | 5150 – 5850 MHz |
| Gain | 3.5 dBi |
| Polarization | Linear, vertical |
| E-plane 3-dB beamwidth | 40 degrees |
| H-plane 3-dB beamwidth | Omnidirectional |
| Connector type | RP-TNC plug |
| Length | 5.3 in. (13.4 cm) |
| Radome length | 3.4 in. (8.6 cm) |
| Width | 0.62 in. (1.5 cm) |
| Operating temperature | –22°F – 158°F (–30°C – 70°C) |
| Storage temperature | –40°F – 185°F (–40°C – 85°C) |
| Environment | Indoor, office |
