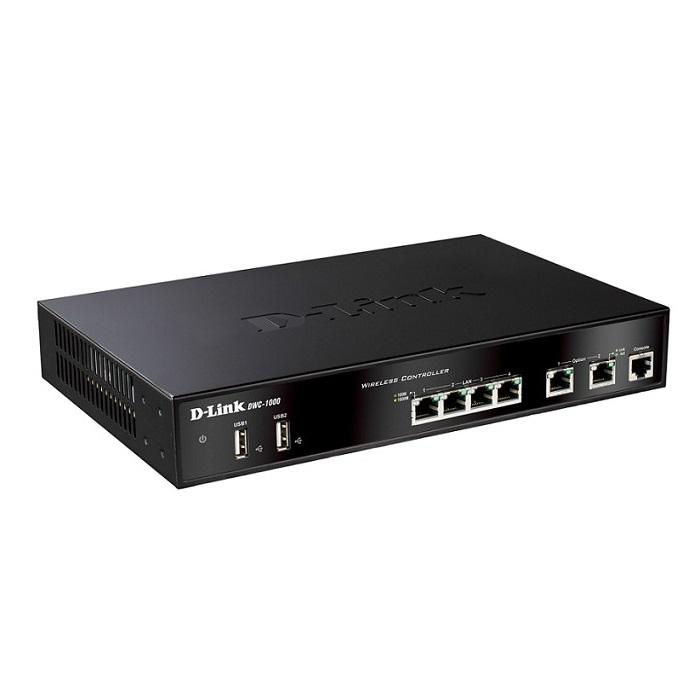

Bộ điều khiển không dây D-Link DWC-1000
- Hỗ trợ cổng kết nối: 2 x USB 2.0, RJ45, 4 x Gigabit LAN.
- Hỗ trợ bảo mật: WEP, Dynamic WEP, WPA Personal/Enterprise, WPA2 Personal/Enterprise.
- Nguồn điện: 12VDC/ 2.5A.
- Công suất tiêu thụ tối đa: 19.3W.
- Kích thước: 280 x 180 x 44 mm.
- Trọng lượng: 1.7 kg.
Interfaces
- 4 x Gigabit LAN ports.
- 2 x Gigabit option ports.
- 2 x USB 2.0 ports.
- 1 x Console (RJ45) port.
Capacity and performance
- Default/maximum APs per unit: 6/12.
- Default/maximum APs when using a cluster of 4 x DWC-1000: 24/48.
- Concurrent Captive Portal authentication users: 512.
- Dedicated IPSec VPN tunnels: 70.
- Dedicated PPTP/L2TP VPN tunnels: 25.
- Dedicated SSL VPN tunnels: 20.
AP discovery & control
- Layer 2.
- Layer 3.
AP monitoring
- Managed AP.
- Rogue AP.
- Authentication fail AP.
- Standalone AP.
Client monitoring
- Authenticated client.
- Rogue client.
- Authentication fail client.
- Ad-hoc client.
Centralised management
- RF channel pattern.
- RF power output.
- Security policy.
Roaming
- Fast roaming.
- Intra/inter-controlling roaming.
- Intra/inter-subnet roaming.
Wireless security
- WEP.
- Dynamic WEP.
- WPA Personal/Enterprise.
- WPA2 Personal/Enterprise.
LAN security
- 802.1x port-based access control.
- Guest VLAN.
Wireless Intrusion Detection & Prevention System (WIDS)
- Rogue/Valid AP classification.
- Rogue AP mitigation.
Authentication
- Captive portal.
- Guest management.
- MAC authentication.
VLAN
- VLAN group: Up to 255 entries.
- 802.1q VLAN.
- Subnet-based VLAN.
- Port-based VLAN.
Firewall system2
- Policy: 100 rules per feature, up to 600 rules total.
- Dynamic routing: RIPv1, RIPv2.
- Dynamic DNS.
- NAT/PAT.
- Web content filtering (Static URL/Keywords).
Networking2
- Route failover.
- Outbound load balancing.
Virtual Private Network (VPN) 2
- Encryption: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL.
- IPSec NAT Traversal.
- Dead Peer Detection.
- IP Encapsulating Security Payload (ESP).
- IP Authentication Header (AH).
- VPN Tunnel Keep Alive.
- Hub and Spoke.
SSL Virtual Private Network (SSL VPN) 2
- Encryption: DES, 3DES, AES.
- Message integrity: MD5, SHA1.
System management
- Web based user interface (HTTP).
- Command line interface (CLI).
- SNMP v1, v2c, v3.
Certifications
- FCC Class B, CE Class B, VCCI, C-tick, IC, cUL, LVD (EN60950-1).
Physical and environmental
- Internal power supply: 12VDC /2.5A
- Max. Power Consumption: 19.3W.
- Dimensions: 280 x 180 x 44 mm.
- Weight: 1.7 kg.
- Bảo hành: 36 tháng.
