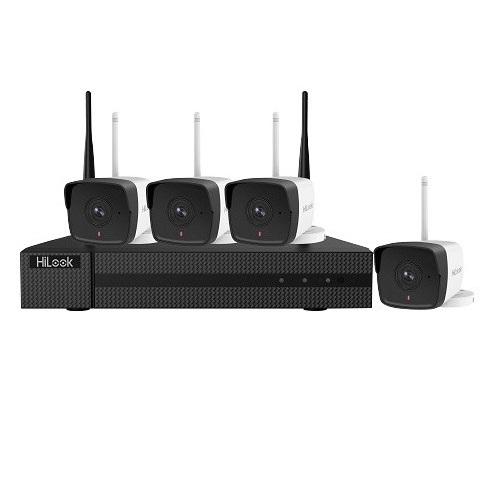

Bộ Kit camera IP Wifi HILOOK IK-4042BH-MH/W(B)
- Bộ KIT Camera IP HILOOK IK-4042TH-MH/P bao gồm: 4 Camera IP hồng ngoại không dây 2.0 Megapixel HILOOK IPC-B120-D/W (B), 1 Đầu ghi hình camera IP Wifi 4 kênh HILOOK NVR-104MH-D/W.
- Camera IP hồng ngoại không dây 2.0 Megapixel HILOOK IPC-B120-D/W (B)
+ Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.
+ Ống kính cố định: 4mm.
+ Tầm quan sát hồng ngoại: 30 mét.
+ Hỗ trợ chuẩn nén: H.265+/H265/H.264+ & H.264.
+ Tích hợp Microphone, tích hợp Wi-Fi.
- Đầu ghi hình camera IP Wifi 4 kênh HILOOK NVR-104MH-D/W
+ Băng thông đầu vào: 50Mbps (Lên tới 4 kênh IP).
+ Băng thông đầu ra: 40 Mbps.
+ Tương thích với tín hiệu ngõ ra: 1 cổng HDMI và 1 cổng VGA.
+ Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
+ Hỗ trợ 2 Ăng-ten ngoài.
+ Tốc độ truyền dẫn: 144 Mbps.
+ Hỗ trợ 1 ổ cứng SATA với dung lượng lên tới 6TB.
Đặc tính kỹ thuật
| Model | IPC-B120-D/W |
| Camera | |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @(F2.0, AGC ON) |
| Shutter Speed | 1/3s to 1/100, 000s |
| Slow Shutter | Yes |
| Wide Dynamic Range | DWDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90° |
| DNR | 3D DNR |
| Day & Night | IR cut filter |
| Lens | |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5° |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio | 1 Built-in mic, mono sound |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Image | |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Scheduled |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240), | |
| Wi-Fi | |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Transfer Rates | 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps |
| Protocol | 802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK |
| Channel Bandwidth | 20 MHz/40 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wireless Range | Up to 50 m (The performance varies based on actual environment) |
| Network | |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour |
| API | ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Client | HiLookVision PC Client, HiLookVision App |
| Web Browser | IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Firmware Version | V5.5.71 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| General | |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug |
| Power Consumption And | 12 VDC, 0.4 A, max. 5W |
| Current | |
| Material | Front cover: metal, back cover: plastic |
| Dimensions | Camera: 99 mm × 68 mm × 66 mm (3.9' × 2.7' × 2.6') |
| With package: 172 mm × 110 mm × 99 mm (6.8' × 4.3' × 3.9') | |
| Weight | Camera: 272 g (0.6 lb.) With package: 517 g (1.1 lb.) |
| Protection Level | IP66 |
| Operating Condition | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
| Compression Standard | |
| H.264+ | Main stream supports |
| H.264 Type | Baseline Profile/Main Profile |
| Video Compression | Main stream: H.264,Sub-stream: H.264/MJPEG, |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Model | NVR-104MH-D/W |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Incoming/Outgoing Bandwidth | 50/40 Mbps |
| Video/Audio Output | |
| HDMI/VGA Output | 1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz |
| Audio Output | 1-ch, RCA (linear, 1 KΩ) |
| Decoding | |
| Recording Resolution | 4 M/3 M/1080p/1.3 M/720p |
| Synchronous Playback | 4-ch |
| Capacity | 2-ch@1080p / 1-ch@4 MP |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| Wireless Parameters | |
| Frequency Band | 2.4 GHz |
| Antenna Structure | 2 × 2MIMO |
| Transmission Speed | 144 Mbps |
| Transmission Standard | IEEE 802.11b/g/n |
| External Interface | |
| Network Interface | 1, RJ45 10/100M Ethernet interface |
| USB Interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power Supply | 12 VDC |
| Consumption (Without Hard Disk) | ≤ 12 W |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 260 × 246 × 48 mm |
| Weight (Without Hard Disk) | ≤ 1 kg (2.2 lb) |
- Bảo hành: 24 tháng.
