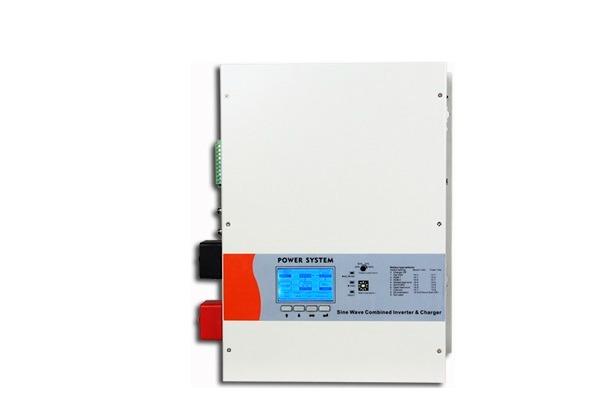

Bộ nguồn Home Interver 1800W APOLLO HI3000
- Công nghệ: Line interactive, sóng sin chuẩn.
- Điện áp vào: 220VAC.
- Tần số nguồn vào: 50Hz/60Hz.
- Điện áp ra: 220VAC.
- Cung cấp cho các thiết bị một nguồn điện ổn định và tin cậy.
- Có chức năng tự nạp điện cho ắc-qui dù UPS đang ở chế độ tắt.
- Ngưỡng điện áp vào rộng.
- Thời gian lưu điện: Tùy thuộc vào acquy lắp bên ngoài.
Đặc tính kỹ thuật
| Model | HI3000 |
| Capacity | 3000VA/ 1800W |
| DC INPUT | |
| Rated voltage | 48 V |
| DC input range (default) | 40 ~ 60V |
| AC INPUT | |
| AC input range (bypass mode) | 0 ~ 121V/ 132V/ 138V/ 144Vac for 100V/ 110V/ 115V/ 120Vac ± 10Vac 0 ~ 242V/ 264V/ 276V/ 288Vac for 200V/ 220V/ 230V/ 240Vac ± 10Vac |
| AC input range (mains mode) | 100V: 70 ~ 130 Vac 110V: 80 ~ 140 Vac 115V: 85 ~ 145 Vac 120V: 90 ~ 150 Vac 200V: 145 ~ 260 Vac 220V: 165 ~ 280 Vac 230V: 175 ~ 290 Vac 240V: 185 ~ 300 Vac |
| Frequency input range | 50Hz/ 60Hz (auto-sense), 50Hz/ 60Hz ± 5% ~ 15% |
| Generator connection | Available (generator input power is settable) |
| OUTPUT | |
| Inverter output range | 100V/ 110V/ 115V/ 120Vac ± 5% (settable) 200V/ 220V/ 230V/ 240Vac ± 5% (settable) |
| AC output range (bypass mode) | 0 ~ 121V/ 132V/ 138V/ 144Vac for 100V/ 110V/ 115V/ 120Vac ± 10Vac 0 ~ 242V/ 264V/ 276V/ 288Vac for 200V/ 220V/ 230V/ 240Vac ± 10Vac |
| AC output range (mains mode) | 100V: 90 ~ 110Vac 110V: 99 ~ 121Vac 115V: 103 ~126Vac 120V: 108 ~132Vac 200V: 166 ~226Vac 220V: 188 ~245Vac, 230V: 199 ~ 254Vac 240V: 210 ~264Vac |
| Output frequency | 50/ 60Hz ± 0.3Hz (settable) |
| Waveform | Pure sine wave |
| Inverter efficiency | Max. 85% |
| Energy saving mode | Settable (< 3% load) , enter in 80 s |
| No-load shutdown | Settable (< 3% load), shut down in 80s |
| Transfer time | ≤ 10 ms |
| THDV (resistive load) | ≤ 5% |
| Protections | Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature |
| Overload time (mains mode) | 120s for 110%, 60s for 125%, 10s for 150% (transfer to bypass mode) |
| Overload time (inverter mode) | 60s for 110%, 10s for 125%, 5s for 150% (Shut down directly) |
| Mute | Automatic mute in 60s or by manual |
| BATTERIES | |
| Battery capacity (H: external expansion) | 48 VDC |
| Charging current | Long time model: 10A (default); <10A, set step 1A; ≥ 10A, set step 5A Max. 20 A |
| Equalizing charge voltage | Single battery 14.1Vdc (default), 13.6 ~ 15Vdc adjustable |
| Floating charge voltage | Single battery 13.5Vdc(default),13.2 ~ 14.6Vdc adjustable |
| Low voltage alarm point | Single battery 10.8Vdc (default), 9.6 ~ 13Vdc adjustable |
| Low voltageshutdown point | Single battery 10.2Vdc (default), 9.6 ~ 11.5Vdc adjustable |
| COMMUNICATIONS | |
| USB+RJ45 (optional) | Supports Windows® 98/ 2000/ 2003/ XP/ Vista/ 2008/ 7/ 8/ 10 |
| SNMP (optional) | Power management from SNMP manager and web browser (standard with slot) |
| OTHERS | |
| Operating temperature | 5℃~ 40℃ |
| Operating humidity | Relative humidity ≤ 93% |
| Noise level | ≤ 50 dB (1m) |
| Tower | Dimensions (W×D×H): 190 x 467 x 335.5 mm |
| Packaged dimensions (W×D×H): 320 x 592 x 462 mm | |
| Net weight: 28.0 kg | |
| Gross weight: 30.0 kg | |
| Rack mount | Dimensions (W×D×H): 440 × 410 × 132 mm |
| Packaged dimensions (W×D×H): 611 × 505 × 235 mm | |
| Net weight: 26.7 kg | |
| Gross weight: 30.5 kg | |
- Bảo hành: 12 tháng.
