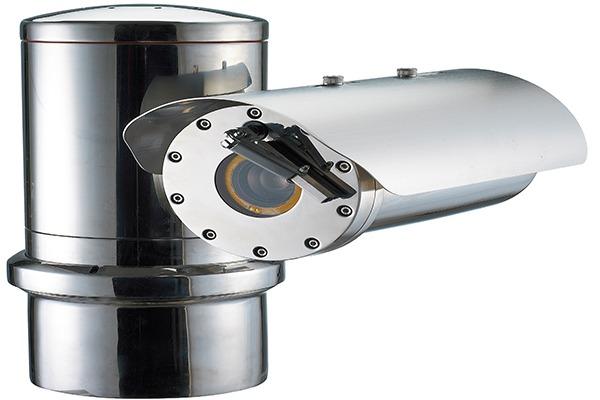

Camera chống cháy nổ 2.0 Megapixel Hanwha Techwin WISENET TNU-6320E
- Cảm biến hình ảnh: 1/2.8 inch 2MP CMOS.
- Chuẩn nén hình ảnh: H.264, MJPEG.
- Độ phân giải: 2.0 Megapixel.
- Ống kính: 4.44~142.6mm (32x).
- Chức năng camera quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng giảm nhiễu số SSNRIII.
- Chức năng chống sương mù Defog.
- Chức năng điều chỉnh độ lợi AGC.
- Ethernet: RJ-45(10/100BASE-T).
- Tiêu chuẩn chống thấm nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 24VAC.
Đặc tính kỹ thuật
| Model | TNU-6320E |
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec) B/W: 0.015Lux(F1.6, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | F1.6 (Wide)~F4.4 (Tele) |
| Min. Object Distance | 1.5m(59.06ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 50˚/sec, Manual: 0.1˚/sec ~ 40˚/sec |
| Tilt Range | 180˚(-90˚~90˚) |
| Tilt Speed | Preset: 50˚/sec, Manual: 0.1˚/sec ~ 40˚/sec |
| Sequence | Preset(255ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
| Operational | |
| Camera Title | Displayed up to 45 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅢ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 4ea, rectangular zone |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Analytics | Face detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area) |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S SUNAPI (HTTP API) SVNP 1.2 Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11,~MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 512MB RAM, 128MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / Less than 90% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -30°C~+60°C (-22°F~+140°F) / Less than 90% RH |
| Certification | IP67, IK10 CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67 Ex tb IIIC T80°C Db |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max 49W |
| Mechanical | |
| Color / Material | Silver / Stainless(SUS316L) |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
