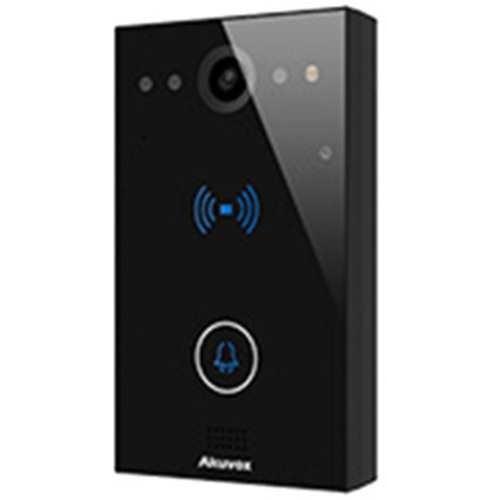

Camera chuông cửa IP AKUVOX E11R
- Camera 2.0 Megapixel tự động cân bằng sáng, góc 116°, hỗ trợ hồng ngoại.
- Giao tiếp video hai chiều, khử tiếng vọng.
- Hỗ trợ nút bấm, hỗ trợ đầu đọc thẻ.
- Hỗ trợ chuẩn giao tiếp NFC, hỗ trợ kết nối được nhiều loại thẻ.
- Tương thích với tất cả tổng đài IP chuẩn SIP.
- Hỗ trợ kết nối tới 8 màn hình khác nhau.
- Điều khiển được 2 cửa khác nhau.
- Hỗ trợ chuẩn PoE, hoặc nguồn điện 12V.
- Vật liệu: Nhựa ABS.
- Vị trí lắp đặt: Trong nhà.
Đặc tính kỹ thuật
| Physical & Power | Front panel: Plastic |
| Camera: 2M pixels, automatic lighting | |
| Button: 1 call button | |
| Light sensor: Support | |
| Infrared sensor: Support | |
| Wiegand port: Support | |
| RF card reader: 13.56MHz & 125kHz | |
| Relays out: 2 | |
| Inputs: 2 | |
| Microphone: -40dB | |
| Speaker: 4Ω / 3W | |
| Ethernet port: RJ45, 10/100Mbps adaptive | |
| 802.3af Power-over-Ethernet | |
| 12V DC connector (if not using PoE) | |
| Installation: Wall-mounted | |
| Wall-mounted DIM: 145x85x27.5mm | |
| Working Humidity: 10~90% | |
| Working Temperature: -20°C ~ +65°C | |
| Storage Temperature: -40°C ~ +70°C | |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec: G.711a, G.711μ, G.729 | |
| Broadband audio codec: G.722 | |
| DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info | |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | Sensor: 1/2.7-inch, CMOS |
| Pixels: CIF, QCIF, VGA, 4CIF, 720p | |
| Video codec: H.264 | |
| Video resolution: up to 1280x720p | |
| Max. image transfer rate: 720p – 30fps | |
| Viewing angle: 116°(H) / 60°(V) | |
| High intensity IR LEDs for picture lighting during dark hours with internal light sensor | |
| Compatible to 3rd-Party-Video components, e.g. NVRs | |
| Door Entry Feature | Relays controlled individually by DTMF tones |
| Camera permanently operational | |
| Auto-night mode with LED illumination | |
| White balance: auto | |
| Minimum illumination: 0.1LUX | |
| Networking & Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup/ restore | |
| Entry log export | |
| Access table export/ import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | Office door phone with on-site or hosted IP-PBX |
| Remote site entry over Internet | |
| Apartment/flat intercom with door access control |
- Bảo hành: 24 tháng.
