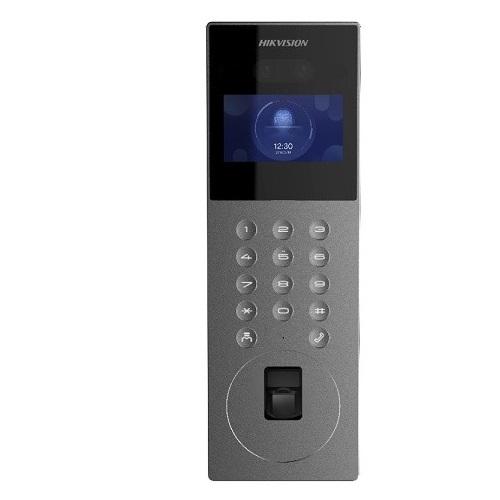

Camera chuông cửa trung tâm IP HIKVISION DS-KD9203-FTE6
- Camera kép 2 × 2MP HD camera góc 120°.
- Màn hình màu LCD 4.3-inch, nút nhấn vật lý.
- Hỗ trợ 20000 khuôn mặt, 5000 vân tay, 100000 thẻ Mifare, 20000 users.
- Hỗ trợ Face anti-spoofing.
- Kết nối cổng mạng 10/100/1000 Mbps.
- I/O input: 4.
- RS-485: 2.
- Door control: 2.
- Debugging port:1.
- Hỗ trợ 500 màn hình chuông cửa.
- Hỗ trợ 8 chuông cửa trung tâm phụ.
- Tiêu chuẩn chống bụi và nước: IP65 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 12 VDC.
Đặc tính kỹ thuật
| Model | DS-KD9203-FTE6 |
| System Parameters | |
| Operation Method | Display screen, physical buttons |
| Operation System | Embedded Linux operation system |
| RAM | 1 GB |
| ROM | 4 GB |
| Alarm parameters | |
| Tampering alarm | 1 |
| Network parameters | |
| Network protocol | TCP/IP, RTSP |
| Network interface | 10/100/1000 Mbps self-adaptive Ethernet |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression rate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Audio intercom | Two-way audio |
| General | |
| Power supply | 12 VDC |
| Power consumption | ≤ 13 W |
| Working temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Working humidity | 10% to 90% |
| Weight | 1.05 kg (without package) 2.281 kg (with package) |
| IP protection level | IP 65 |
| Installation | Flush mounting |
| Material | Plastic & glass |
| Video parameters | |
| Video frame rate | 50 Hz, 60 Hz |
| Night Vision | Low illumination, IR supplement lights |
| Video compression Standard | H.264 |
| Wide dynamic range | True WDR |
| Camera | 2 × 2 MP HD camera |
| Stream | Main stream: 1080p@30fps,720p@30fps Sub stream: VGA@25fps, VGA@30fps |
| Display Parameters | |
| Display Screen | 4.3-inch colorful LCD |
| Display Resolution | 800 × 480 |
| Access control Parameters | |
| Card type | Mifare card |
| Device interfaces | |
| I/O input | 4 |
| RS-485 | 2 |
| Debugging port | 1 |
| Door control | 2 |
| Performances | |
| Fingerprints capacity | Max. 5000 |
| Card capacity | Max. 100000 |
| User capacity | Max. 20000 |
| Face capacity | Max. 20000 |
| Linked indoor station | Max. 500 |
| Linked sub door station | Max. 8 |
| Protocol | ISAPI, RTSP, SNMPv1,v2,v3 |
| Unlock door | Unlock by presenting cards, unlock by face, unlock via Client Software, unlock by indoor station |
| Face anti-spoofing | Support |
| Face recognition distance | 2 m |
| Face recognition time | ≤ 0.2 s |
| Fingerprint recognition time | ≤ 1.5 s |
- Bảo hành: 24 tháng.
