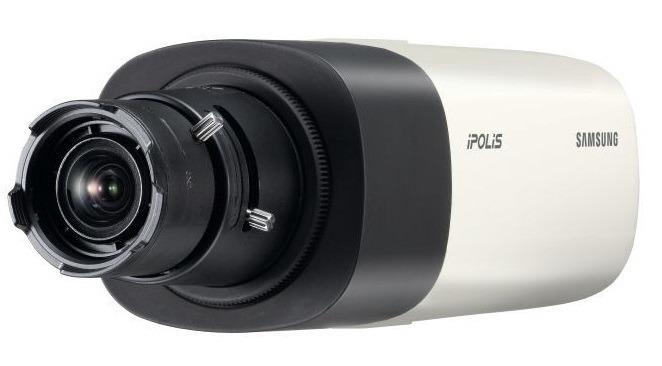

Camera IP 2.0 Megapixel Hanwha Techwin WISENET SNB-6005/KAP
-Cảm biến hình ảnh: 1/1.9 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải: 2 Megapixel.
-Độ nhạy sáng: Color: 0.03Lux (1/30sec, F1.2, 50IRE), 0.015Lux (1/30sec, F1.2, 30IRE). B/W: 0.003Lux (1/30sec, F1.2, 50IRE), 0.0015Lux (1/30sec, F1.2, 30IRE).
-Chức năng camera quan sát Ngày và Đêm (ICR).
-Chức năng chống sương mù Defog.
-Chức năng giảm nhiễu số 2D+3D.
-Chức năng điều chỉnh độ lợi AGC.
-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).
-Chức năng phát hiện chuyển động: Off/ On (4ea 4 points polygonal zones).
-Chức năng vùng riêng tư: Off / On (32 zones of rectangular).
-Chức năng Simple Focus.
-Đa ngôn ngữ.
-Nguồn điện cung cấp: 24VAC ± 10%.
-Chức năng cấp nguồn qua mạng PoE.
-Kích thước: 73.1 x 66.6 x 147.8mm.
-Trọng lượng: 430g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/1.9 inch CMOS |
| Effective Pixels | 1,952(H) x 1,241(V) |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.03 Lux (1/30sec, F1.2, 50IRE), 0.015Lux (1/30sec, F1.2, 30IRE) |
| B/W: 0.003 Lux (1/30sec, F1.2, 50IRE), 0.0015Lux (1/30sec, F1.2, 30IRE) | |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| DIP connector type | |
| Lens | |
| Focus Control | Simple focus (Motorized V/F) / Manual, |
| Remote control via network, Button control (Manual, Simple focus) | |
| Lens Type | Manual/ DC auto iris, P-Iris |
| Mount Type | C / CS |
| Operation | |
| Camera Title | Off / On (Displayed up to 45 characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Off / On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Motion Detection | Off / On (4 zones with 4 points polygonal) |
| Privacy Masking | Off / On (32 zones of rectangular) |
| Gain Control | Off / Low / Middle / High/ Manual |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection - Support metadata |
| Alarm I/O | Input 1ea / Output 1ea |
| Remote Control Interface | RS-485 |
| RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output |
| Network | |
| Ethernet | RJ-45 (10/100/1000BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC): Main / Baseline / High , MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Max. Frame rate | H.264: Max. 60fps@the other resolutions |
| MJPEG: Max. 15fps@1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 | |
| Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 18 | |
| Smart Codec | Manual mode (Area-based: 5ea), Face detection mode |
| Video Quality Adjustment | H.264: Target bitrate level control, MJPEG: Quality level control |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 6 profiles) |
| Audio In | Selectable (Mic in / Line in) (Built-in mic) |
| Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm | |
| Audio Out | Line out (3.5mm stereo mini jack), Max output level: 1Vrms |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication | Bi-directional audio |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 15 users at unicast mode |
| Edge Storage | SD/SDHC/SDXC - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API), SVNP 2.0, Wisenet Open Platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek |
| Web Viewer | Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 |
| Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11). | |
| Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25). | |
| Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7). Mac OS X only | |
| Central Management Software | SmartViewer, SSM |
| ELECTRICAL | |
| Input Voltage / Current | 24VAC ±10%, 12VDC ±10%, PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 11.44W (24VAC, 50 ~ 60Hz), Max. 10.1W (12VDC), Max. 11.1W (PoE, Class3) |
| Color / Material | Black, Ivory / Aluminium |
| Dimensions | 73.1 x 66.6 x 147.8mm |
| Weight | 430g |
