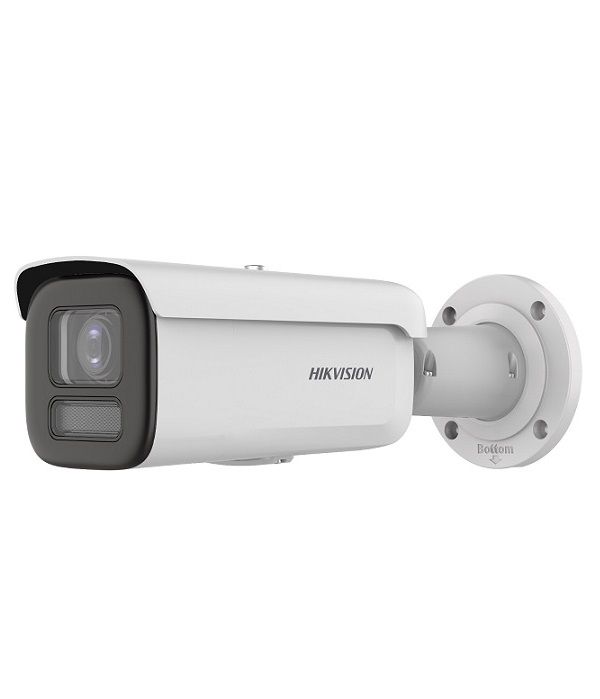

Camera IP 4.0 Megapixel HIKVISION DS-2CD2647G2T-LZS (C)
- Camera IP ColorVu Zoom và chống báo giả cho hình ảnh màu sắc 24/7.
- Cảm biến hình ảnh: 1/1.8” Progressive Scan CMOS.
- Độ phân giải: 4MP (2688 × 1520).
- Độ nhạy sáng: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light.
- Ống kính: 2.8 to 12 mm.
- Đèn trợ sáng lên đến 60 mét.
- Chống ngược sáng thực 130dB WDR.
- Chức năng bù ngược sáng BLC.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng chống sáng chói HLC.
- Chống báo giả bằng thuật toán deep learning phân biệt người & phương tiện.
- Cổng báo động Alarm: 1 in / 1 out.
- Cổng Audio: 1 in / 1 out.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Model | DS-2CD2647G2T-LZS (C) |
| Camera | |
| Image Sensor | 1/1.8 inch Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens | Varifocal lens, motorized lens, 2.8 to 12 mm |
| FOV | 2.8 to 12 mm, horizontal FOV 105.4° to 56.4°, vertical FOV 53.9° to 31.6°, diagonal FOV 131.8° to 65.1° |
| Aperture | F1.0 |
| Lens Mount | Integrated |
| Iris Type | DC iris |
| Depth of Field | 1.9 m to ∞ |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Video | |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8Mbps |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Image | |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Wide Dynamic Range (WDR) | 130 dB |
| Privacy Mask | 4 regions of privacy mask |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| Interface | |
| Alarm | 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) |
| Audio | 1 input (line in), 2-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), 2-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output, white light flashing |
| Deep Learning Function | |
| Face Capture | Yes |
| General | |
| General Function | Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter |
| Power Supply | 12 VDC ± 25%, 1.21 A, max. 14.5 W, two-core terminal block, reverse polarity protection PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Ingress Protection | IP67, IK10 |
| Dimensions | 298 mm × 97.9 mm × 95.7 mm |
| Weight | Approx. 1465 g |
- Bảo hành: 24 tháng.
