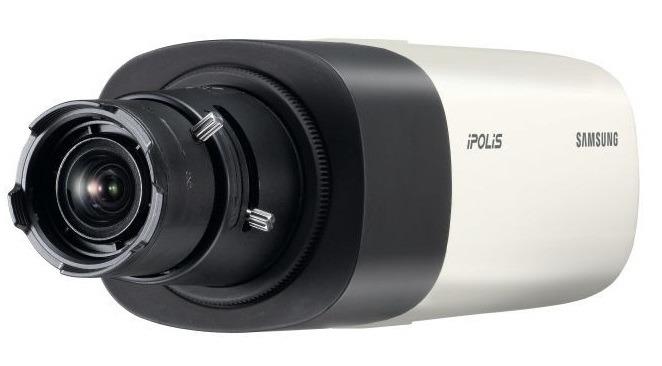

Camera IP 5.0 Megapixel Hanwha Techwin WISENET SNB-8000/KAP
-Cảm biến hình ảnh: 1/1.8 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải: 5.0 Megapixel.
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng 64GB.
-Zoom số: 16x.
-Chức năng quan sát Ngày và Đêm (ICR).
-Chức năng giảm nhiễu số 2D+3D.
-Chức năng điều chỉnh độ lợi AGC.
-Chức năng phân tích Video thông minh.
-Chức năng phát hiện vùng riêng tư: Off / On (32ea, Rectanglular zones).
-Chức năng phát hiện chuyển động: Off / On (4ea, Rectanglular zones).
-Chức năng Simple focus.
-Chức năng điều khiển từ xa (Remote Control).
-Đa ngôn ngữ.
-Cổng kết nối: RJ-45 (10/100Base-T).
-Nguồn điện: 24VAC ± 10%.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 12.65W.
-Kích thước: 73.1 x 66.6 x 147mm.
-Trọng lượng: 566g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/1.8 inch CMOS |
| Effective Pixels | 2,592(H) x 1,944(V) |
| Scanning System | Progressive |
| Min. Illumination | Color : 0.2Lux (1/20sec, F1.2, 50IRE), 0.005Lux (2sec, F1.2, 50IRE) 0.1Lux (1/20sec, F1.2, 30IRE), 0.0025Lux (2sec, F1.2, 30IRE) |
| B/W : 0.02Lux (1/20sec, F1.2, 50IRE), 0.0005Lux (2sec, F1.2, 50IRE) 0.01Lux (1/20sec, F1.2, 30IRE), 0.00025Lux (2sec, F1.2, 30IRE) | |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| BNC type | |
| Lens | |
| Focus Control | Simple focus / Manual. Remote control via network, Button control (Manual, Simple focus, Day & Night) |
| Lens Type | Manual / DC auto iris |
| Mount Type | C / CS |
| Operation | |
| Camera Title | Off / On (Displayed up to 20 characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC |
| Contrast Enhancement (DWDR) | SSDR (Off / On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Motion Detection | Off / On (4ea 4 points polygonal zones) |
| Privacy Masking | Off / On (32 zones of rectangular) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / mercury |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
| D-PTZ | 16x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Tampering, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Remote Control Interface | RS-485 |
| RS-485 Protocol | Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output |
| Network | |
| Ethernet | RJ-45 (10/100/1000BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | 5M mode : 2592 x 1944, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 |
| 2M mode : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 | |
| Max. Frame rate | 5M mode - H.264: 20fps for all resolution |
| MJPEG: 2592 x 1944: 10fps 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: 15fps 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240: 20fps | |
| 2M mode - H.264 : 30fps for all resolution | |
| MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: 15fps 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 : 20fps | |
| Video Quality Adjustment | H.264: Target bitrate level control, MJPEG: Quality level control |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 6 profiles) |
| Audio In | Selectable (Mic in / Line in) (Built-in mic) |
| Supply voltage: 2.5V DC (4mA), Input impedance: approx. 2K Ohm | |
| Audio Out | Line out (3.5mm stereo mini jack), Max output level: 1Vrms |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication | Bi-directional audio |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 users at unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC (64GB) Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API), SVNP 2.0, Wisenet Open Platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish |
| Web Viewer | Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 |
| Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11). | |
| Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25). | |
| Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7). Mac OS X only | |
| Central Management Software | SmartViewer, SSM |
| ELECTRICAL | |
| Input Voltage / Current | 24VAC ±10%, 12VDC ±10%, PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 12.65W (24V AC, 50 ~ 60Hz), Max. 12W (12V DC), Max. 12W (PoE, Class3) |
| Color / Material | Black, Ivory / Aluminium |
| Dimensions | 73.1 x 66.6 x 147.0mm |
| Weight | 566g |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
