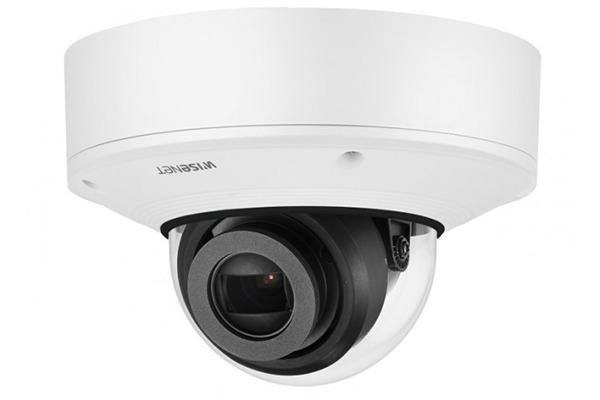

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6081
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng: 0.015Lux@F1.4 (Color), 0.0015Lux@F1.4 (B/W).
- Ống kính: 2.8 ~ 12mm (4.3x).
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (150dB).
- Chức năng phân tích Video và Audio.
- Chức năng Auido playback.
- Hỗ trợ Hallway View, WiseStreamII.
- Nguồn điện: 12VDC, 24VAC (tùy chọn).
- Tiêu chuẩn chống thấm nước: IP66/ IP67 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10+.
Đặc tính kỹ thuật
Model | XNV-6081 |
VIDEO | |
Imaging Device | 1/2.8 inch 2 MP CMOS |
Effective Pixels | 1945(H) x 1097(V) |
Minimum Illumination | Color : 0.015Lux (F1.4, 1./30sec) / B/W : 0.0015Lux (F1.4, 1/30sec) |
Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation USB : Micro USB Type B, 1280 x 720 for installation |
LENS | |
Focal Length (Zoom Ratio) | 2.8~12mm (4.3x) motorized varifocal |
Max. Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
Angular Field of View | H : 119.5°(Wide)~27.9°(Tele) / V : 62.8°(Wide)~15.7°(Tele) / D : 142.1°(Wide)~32.0°(Tele) |
Minimum Object Distance | 0.5m (1.64ft) |
Focus Control | Simple focus |
Lens Type | DC auto iris, P-iris |
PAN / TILT / ROTATE | |
Pan / Tilt / Rotate Range | 0˚~360˚ / -45˚~85˚ / 0˚~355˚ |
OPERATIONAL | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto (ICR) |
Backlight Compensation | BLC, HLC, WDR, SSDR |
Wide Dynamic Range | 150dB |
Digital Noise Reduction | SSNR V |
Digital Image Stabilization | Support (built-in gyro sensor) |
Defog | Support |
Motion Detection | 8ea, 8-point polygonal zones |
Privacy Masking | 32ea, polygonal zones - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Digital PTZ | Support (Preset, Group) |
Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
Analytics | Defocus detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line/Directional detection, Audio detection, Sound classification, Shock detection |
Business Intelligence | People counting, Queue management, Heatmap |
Alarm I / O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
Audio In | Selectable (mic in/line in), Supply voltage : 2.5VDC (4mA), Input impedance : 2K Ohm |
Audio Out | Line out, Maximum output level : 1Vrms |
NETWORK | |
Ethernet | RJ-45 (10/100BASE-T) |
Video Compression | H.265/H.264 : Main / Baseline / High, MJPEG |
Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
Maximum Frame rate | H.265/H.264 : Maximum 60fps / 50fps (60Hz/50Hz) MJPEG : Maximum 30fps / 25fps (60Hz/50Hz) |
Smart Codec | Manual (5ea area), WiseStream II |
Video Quality Adjustment | H.264/H.265 : Target bitrate level control MJPEG : Target bitrate level control |
Bitrate Control | H.264/H.265 : CBR or VBR MJPEG : VBR |
Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles) |
Audio Compression | G.711 u-law / G.726 Selectable |
G.726 (ADPCM) 8KHz, G.711 8KHz | |
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
AAC-LC : 48Kbps at 16KHz | |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
Security | HTTPS (SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication (EAP-TLS, EAP-LEAP) |
Edge Storage | Micro SD/SDHC/SDXC 2 slots 512GB |
Application Programming Interface | ONVIF Profile S/G SUNAPI (HTTP API) Wisenet open platform |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser : Google Chrome Supported Browser : MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari (Mac OS X only) |
Memory | 1024MB RAM, 256MB Flash |
ENVIRONMENTAL | |
Operating Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH Start up should be done at above -35°C |
Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
Certification | IP66/IP67, IP6K9K, IK10+, NEMA4X |
ELECTRICAL | |
Input Voltage | PoE (IEEE802.3af, Class3), 24VAC (Optional), 12VDC |
Power Consumption | PoE : Max 7.0W, typical 4.9W 12VDC : Max 5.4W, typical 3.7W 24VAC : Max 7.1W, typical 4.9W |
MECHANICAL | |
Color / Material | White / Aluminum |
RAL Code | RAL9003 |
Dimensions | Ø180x125mm |
Weight | 1.75kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
