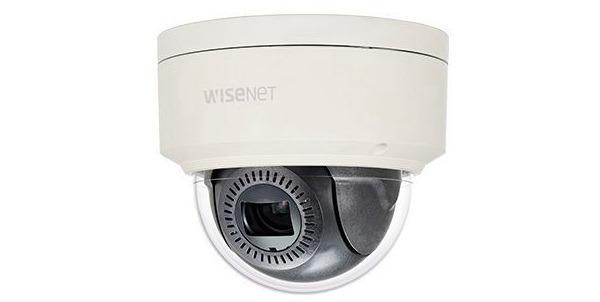

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6085/VAP
- Cảm biến hình ảnh: 1/2 inch 2.17M CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.
- Độ phân giải camera ip: 2.0 Megapixel (1920 x 1080) 60fps.
- Độ nhạy sáng: 0.004 Lux @ F0.94 (Màu), 0.0004 Lux @ F0.94 (B / W).
- Ống kính: 4.1 ~ 16.4mm Motorized.
- Zoom quang: 4x.
- Zoom số: 24x.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (150dB).
- Chức năng giảm tiếng ồn kỹ thuật số SSNRV.
- Chức năng thông minh giúp tự động theo dõi, phân loại âm thanh, hình ảnh, theo dõi bằng công nghệ cảm biến quang học, nhanh chóng hỗ trợ người dùng trong việc phát hiện đối tượng lảng vảng.
- Tiêu chuẩn chống thấm nước: IP67 / IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2.17M CMOS |
| Total Pixels | 1,952(H) X 1,113(V) approx 2.17M pixels |
| Effective Pixels | 1,945(H) X 1,097(V) approx 2.13M pixels |
| Min. Illumination | Color : 0.004 Lux (1/30sec, F0.94), B/W : 0.0004 Lux (1/30sec, F0.94) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω Composite, 720 x 480(N), 720 x 576(P), for Installation |
| USB: Micro USB Type B, 1280 x 720, for Installation | |
| Lens | |
| Focal Length (Zoom Ratio) | 4.1 ~ 16.4mm (Optical 4x) |
| Max. Aperture Ratio | F0.94(Wide) ~ F2.4(Tele) |
| Angular Field of View | H : 100˚(Wide) ~ 26.2˚(Tele) / V : 54˚(Wide) ~ 14.8˚(Tele) / D : 116˚(Wide) ~ 30˚(Tele) |
| Focus Control | Simple Focus (motorized V/F) / Manual |
| Lens / Mount Type | DC Auto Iris / Board-in Type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ±175° / ±73° / ±175° |
| PTR Control | Remote adjustment (Max. 200 cycles) |
| Operational | |
| Camera Title | Off / On (Displayed up to 85 Characters) |
| - W/W : English / Numeric / Special Characters | |
| - China : English / Numeric / Special / Chinese Characters | |
| - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by Resolution | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway View : 90˚/270˚ |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handover |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjusment |
| LDC (Lens Distortion Correction) | Off / On (5 Levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital Zoom | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On, Hallway View : 90˚/270˚ |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion |
| detection, Sound Classification | |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| DPTZ preset | |
| Pixel Counter | Support |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, |
| 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps at all resolutions |
| Smart Codec | Manual Mode (Area-Based : 5ea) |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming Capability | Multiple streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm |
| Audio Out | Line Out (3.5mm Mono Jack), Max Output Level: 1 Vrms |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Audio Communication | Bi-directional (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC 2Slot (Up to 512GB) - Continuous Recording (1st Slot to 2nd Slot) |
| - Motion Images recorded in the SD / SDHC / SDXC Memory Card Can be Downloaded. | |
| NAS (Network Attached Storage), Local PC for Instant Recording | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12 |
| Non-Plugin Web Viewer | |
| Supported Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49 | |
| (Window 64bit only), Apple Safari 10 (Mac OS X only) | |
| Plug-in Web Viewer | |
| Supported Browser: MS Explore 11, Apple Safari 10 (Mac OS X only) | |
| Central Management Software | SmartViewer, SSM |
| Environmental | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% |
| Certification | IP67, IP66, NEMA 4X / IK10 |
| Electrical | |
| Input Voltage | 24VAC, 12VDC, PoE (IEEE802.3af Class3) |
| Power Consumption | Max. 13.5W (24V AC), Max. 11.1W (12V DC), Max. 12.1W (PoE) |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Dimensions | Ø160 x 140mm |
| Weight | 1.40kg |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
