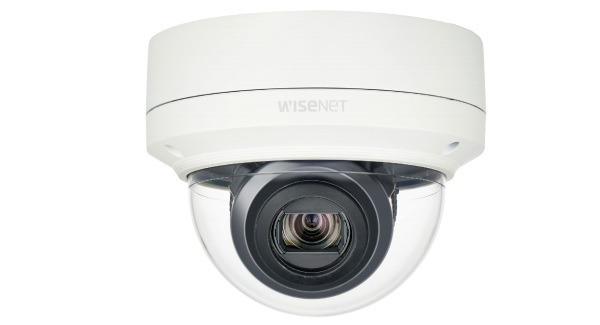

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6120/VAP
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 5.2 ~ 62.4mm.
- Zoom quang: 12x.
- Zoom số: 24x.
- Hỗ trợ âm thanh 2 chiều.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống sương mù Defog.
- Chức năng ổn định hình ảnh số Defog với tích hợp cảm ứng Gyro.
- Chức năng phát hiện chuyển động.
- Hỗ trợ LDC (Lens Distortion Correction).
- Tiêu chuẩn chống thấm nước và bụi: IP67/ IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC, 24VAC.
- Kích thước: Ø160 x 128.45mm.
- Trọng lượng: 985g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Min. Illumination | Color: 0.03 Lux (F1.6, 1/30sec), B/W: 0.003 Lux (F1.6, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω Composite, 720 x 480(N), 720 x 576(P), for Installation |
| USB: Micro USB Type B, 1280 x 720, for Installation | |
| Lens | |
| Focal Length (Zoom Ratio) | 5.2 ~ 62.4mm (Optical 12X) |
| Max. Aperture Ratio | F1.6 (Wide) ~ F3.0 (Tele) |
| Angular Field of View | H: 54.58˚(Wide) ~ 5.30˚(Tele) / V: 32.19˚(Wide) ~ 3.00˚(Tele) / D: 61.40˚(Wide) ~ 6.06˚(Tele) |
| Focus Control | Auto / Manual / One shot AF |
| Lens / Mount Type | DC Auto Iris / Board-in Type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 75° / 0° ~ 355° |
| Operational | |
| Camera Title | Off / On (Displayed up to 85 Characters) |
| - W/W : English / Numeric / Special Characters | |
| - China : English / Numeric / Special / Chinese Characters | |
| - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by Resolution | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8Point polygonal zones), Handover |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjusment |
| LDC (Lens Distortion Correction) | Off / On (5 Levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital Zoom | 24x |
| Preset | 300ea |
| Rotate Image | Flip, Mirror, Hallway view (90˚/270˚) |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion |
| detection, Sound Classification | |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| DPTZ preset | |
| Pixel Counter | Support |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, |
| 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps at all resolutions |
| Smart Codec | Manual Mode (Area-Based : 5ea) |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming Capability | Multiple streaming (Up to 10 Profiles) |
| Audio In | Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm |
| Audio Out | Line Out (3.5mm Mono Jack), Max Output Level: 1 Vrms |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Audio Communication | Bi-directional (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access Log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC 2Slot (Up to 512GB) - Continuous Recording (1st Slot to 2nd Slot) |
| - Motion Images recorded in the SD / SDHC / SDXC Memory Card Can be Downloaded. | |
| NAS (Network Attached Storage), Local PC for Instant Recording | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12 |
| Non-Plugin Web Viewer | |
| Supported Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49 | |
| (Window 64bit only), Apple Safari 10 (Mac OS X only) | |
| Plug-in Web Viewer | |
| Supported Browser: MS Explore 11, Apple Safari 10 (Mac OS X only) | |
| Central Management Software | SmartViewer |
| Environmental | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% |
| Certification | IP67, IP66, NEMA 4X / IK10 |
| Electrical | |
| Input Voltage | 24VAC, 12VDC, PoE (IEEE802.3af Class3) |
| Power Consumption | 24VAC: Max 8.2W, 12VDC: Max 7W, PoE: Max 7.8W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Dimensions | Ø160 x 128.45mm |
| Weight | 985g |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
