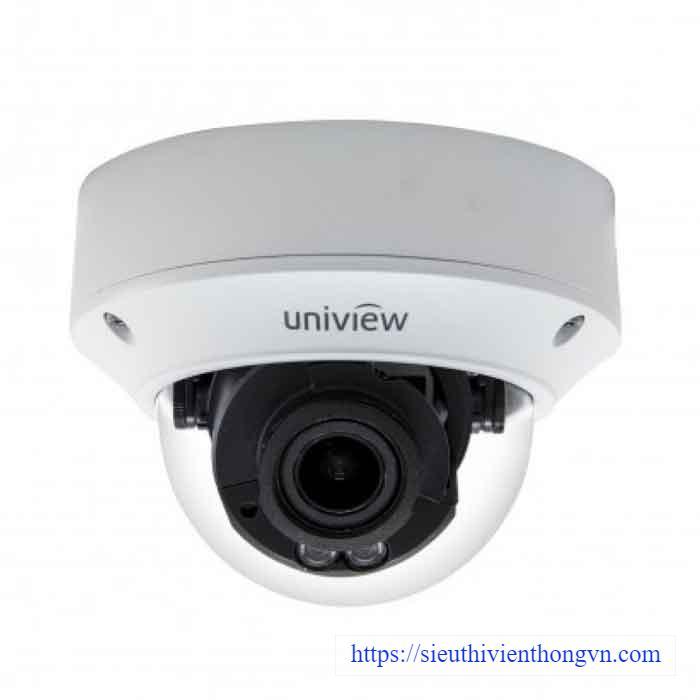

Camera IP Dome hồng ngoại 2.0 Megapixel UNV IPC3232ER-VS-C
- Cảm biến hình ảnh: 1/2.9 inch progressive scan CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.
- Ghi hình: 1902 x 1080@30 fps.
- Ống kính: 2.8 ~ 12 mm.
- Tầm quan sát hồng ngoại: 30 mét.
- Độ nhạy sáng: Colour: 0.01 Lux (F1.4, AGC ON), 0 Lux with IR on.
- Góc quan sát: 94.0° (wide) ~28.0° (tele).
- Hỗ trợ khe cắm thẻ nhớ với dung lượng lên tới 128 GB.
- Chế độ hành lang Corridor mode.
- Chức năng quan sát Ngày/Đêm.
- Chức năng giảm nhiễu kỹ thuật số 2D/3D DRN.
- Chức năng đếm người ra vào, hàng rào bảo vệ ảo, vạch báo động, phát hiện khuôn mặt, phát hiện chuyển động.
- Chức năng chống ngược sáng kỹ thuật số DWDR.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống đập phá: IK10.
- Nhiệt độ hoạt động: –40°C ~ +60°C.
- Nguồn điện: 12 VDC.
- Chức năng cấp nguồn qua mạng PoE (Power over Ethernet).
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
Đặc tính kỹ thuật
| Model | IPC3232ER-VS-C |
| Camera | |
| Sensor | 1/2.9 inch, progressive scan,2.0 megapixel, CMOS |
| Lens | 2.8~12mm@ F1.4 |
| Angle of View (H) | 94.0° (wide) ~28.0° (tele) |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination | Colour: 0.01 Lux (F1.4, AGC ON) |
| 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; |
| Sub Stream:2MP (1920×1080): Max. 30 fps; | |
| Third Stream:D1 (720×576): Max. 30 fps | |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detectio |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | DC12V±25%, PoE (IEEE802.3 af) |
| Power consumption: max. 7.2 W | |
| Dimensions (Ø x H) | Φ148 x 111.3 mm |
| Weight | 0.75 kg (1.7 lb) |
| Working Environment | -40°C ~ +60°C, Humidity:10%~90% RH (non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
- Bảo hành: 02 năm.
