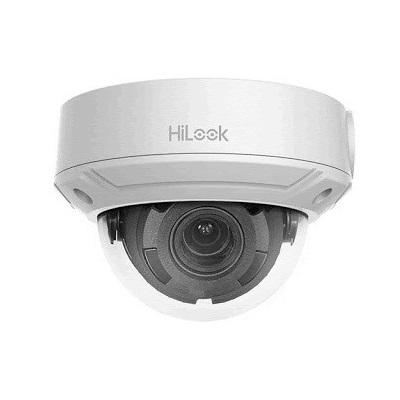

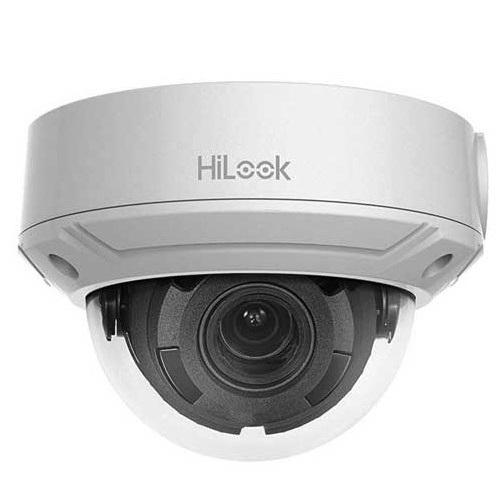

Camera IP Dome hồng ngoại 2.0 Megapixel HILOOK IPC-D620H-Z
- Cảm biến hình ảnh: 1/2.8 inch Progressive CMOS.
- Độ phân giải tối đa: 1920x1080:25fps.
- Chuẩn nén: H.265+/ H265/ H.264+/ H.264.
- Ống kính: 2.8~12mm (thay đổi tiêu cự bằng phần mềm).
- Tầm quan sát hồng ngoại: 30 mét.
- Hỗ trợ 2 luồng dữ liệu.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC.
- Hỗ trợ chế độ ngày/đêm: Đặt theo lịch, tự động, ngày, đêm.
- Hỗ trợ khe cắm thẻ nhớ, tối đa 128GB.
- Chỉnh góc theo 3 trục.
- Hỗ trợ giám sát bằng ứng dụng HiLook trên điện thoại.
- Tiêu chuẩn chống bụi và nước: IP67 (Thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: DC12V & PoE.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) |
| Slow shutter | Support |
| Shutter time | 1/3s to 1/100,000s |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360° |
| IR Range | 30m |
| Day& Night | IR Cut Filter |
| Wide Dynamic Range | Digital WDR |
| Digital noise reduction | 3D DNR |
| Focal Length | 2.8 to 12 mm |
| Focus | Auto |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
| H.265+ | Main stream supports |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| Video bit rate | 32Kbps~8Mbps |
| Dual Stream | Yes |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| General | |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W |
| Impact Protection | IK10 |
| Weather Proof | IP67 |
| Dimensions | 141 mm × 99.6 mm |
| Weight | Approx. 830 g |
- Bảo hành: 24 tháng.
