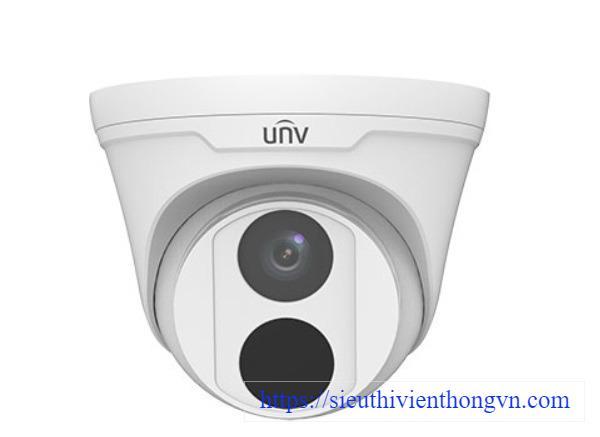

Camera IP Dome hồng ngoại 2.0 Megapixel UNV IPC3612LR3-PF28-D
- Cảm biến hình ảnh: 1/2.7-inch CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Chuẩn nén hình ảnh: Ultra265/ H.265/ H.264/ MJPEG.
- Hỗ trợ 3 luồng video.
- Góc quan sát: 112.7°/ 60.1°/ 146.5°.
- Tầm quan sát hồng ngoại: 30 mét.
- Độ nhạy sáng: 0.02 Lux (Colour).
- Hỗ trợ chức năng tự động chuyển ngày đêm.
- Chức năng tự động cân bằng ánh sáng trắng, chống gợn.
- Hỗ trợ chống nhiễu 3DNR, chống ngược sáng DWDR.
- Hỗ trợ chức năng quan sát hành lang.
- Chức năng cấp nguồn qua mạng PoE (Power over Ethernet).
- Nguồn điện: DC12V (± 25%).
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/2.7-inch, 2.0 Megapixel, Progressive Scan, CMOS |
| Lens | 2.8mm@F2.0 |
| Angle of view (H) | 112.7° |
| Angle of View (V) | 60.1° |
| Angle of View (O) | 146.5° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360° |
| Min. Illumination | Colour: 0.02Lux (F2.0, AGC ON) 0Lux with IR |
| IR Range | Up to 30m (98ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | Supported |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 1920*1080 |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, Motion detection,Tampering alarm |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatible Integration | ONVIF (Profile S, Profile T),API |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.5W |
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) |
| Weight | 0.2kg (0.44lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
- Bảo hành: 2 năm.
