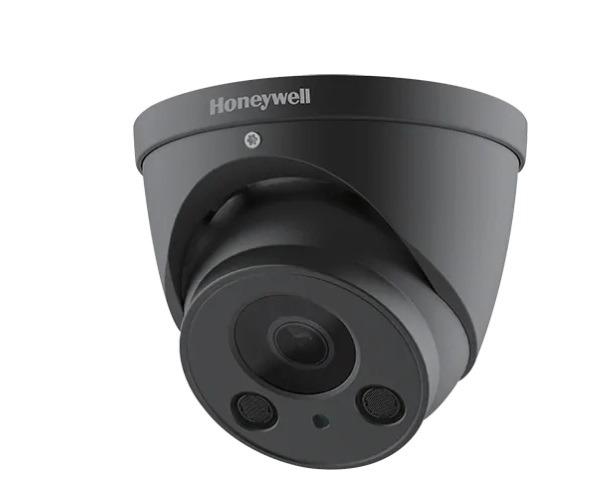

Camera IP Dome hồng ngoại 4.0 Megapixel HONEYWELL HEW4PER2B
- Cảm biến hình ảnh: 1/3-inch progressive scan CMOS.
- Độ phân giải camera ip: 4.0 Megapixel.
- Ống kính: 2.7mm~13.5mm, Motorized, F1.4.
- Tốc độ khung hình: Lên đến 30 fps.
- Độ nhạy sáng tối thiểu: 0.3lux/F1.4(color,30IRE); 0Lux/F1.4(IR on).
- Hỗ trợ khe cắm thẻ nhớ cho MicroSDHC, up to 128GB.
- Tầm quan sát hồng ngoại: 50 mét.
- Chuẩn nén hình ảnh: H.265/H.264H/Smart Codec/MJPEG (Sub Stream).
- Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12 VDC.
Đặc tính kỹ thuật
| Model | HEW4PER2B |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive |
| Image Sensor | 1/3-inch 4 Megapixel progressive scan CMOS |
| Number Of Pixels (H × V) | 2688(H) x1520(V) |
| Minimum Illumination | 0.3lux/F1.4(color,30IRE) 0Lux/F1.4(IR on) |
| S/N Ratio | More than 45dB |
| Electronic Shutter Speed | 1/3~1/100000s |
| IR Distance | Up to 50m (164ft), depending on scene reflectance |
| IR Light Control | Manual/SmartIR/OFF |
| IR Light Number | 2 |
| Day/Night | Auto(ICR)/ Color/ B/W |
| Backlight Compensation | BLC/ HLC/ WDR |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual/ Customized Region |
| Gain Control | 0-100% |
| Wide Dynamic Range | 120dB |
| Noise Reduction | 3D DNR |
| Privacy Masking | Off / On (4 Areas, Rectangle) |
| Motion Detection | Off / On (4 Zones, Rectangle) |
| Region Of Interest | Off / On (4 Zones) |
| Lens | 2.7mm~13.5mm, Motorized, F1.4 |
| Angle Of View | H:108°~28°, V:58°~16° |
| VIDEO | |
| Video Compression | H.265/H.264H/Smart Codec/MJPEG (Sub Stream) |
| Resolution | 4M(2688×1520)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280×720)/ D1(704 480/576)/ VGA(640×480)/ CIF(352×240/288) |
| Frame Rate | Main Stream: 4M(1~20fps) Sub Stream: D1(1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps |
| NETWORK | |
| Ethernet | RJ-45 (10/100Base-T) |
| Supported Web Browsers | Internet Explorer (11.0+) |
| Supported OS | Windows® 7 32-bit/64-bit; Windows® 10 32-bit/64-bit |
| Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; DHCP; DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; TLS |
| Interoperability | ONVIF Profile S/G/Q |
| Maximum Users Access | 20 Users |
| Security | User account and password protection HTTPS, IP Filter, Digest authentication, User access log, TLS1.2 only, AES-128/256, SSH/Telnet closed, sFTP by default, PCIDSS compliance |
| Event | No SD card, SD card error, Capacity warning, Network disconnection, IP conflict, Illegal access |
| Micro SD | Up to 128 GB microSDHC card, Class 10 (not included) |
| ELECTRICAL | |
| Power Supply | DC12V, PoE (IEEE802.3af) (Class 0) |
| Power Consumption | <9.5W |
| MECHANICAL | |
| Dimensions | Ø122mm x 102mm(4.8’’ x4.0’’) |
| Product Weight | 0.60Kg(1.32lb) |
| Package Weight | 0.75kg (1.65lb) |
| Construction | Die-cast aluminum housing with powder coat |
| ENVIRONMENTAL | |
| Operating Temperature | -30° C ~ +60° C (-22° F ~ +140° F) |
| Relative Humidity | Less than 95%, non-condensing |
| Ingress Protection | IP66 |
| REGULATORY | |
| Emissions | FCC Part 15B, EN55032 |
| Immunity | EN 50130-4 |
| Safety | UL 60950-1, EN 62368-1 |
| ROHS | EN 50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
