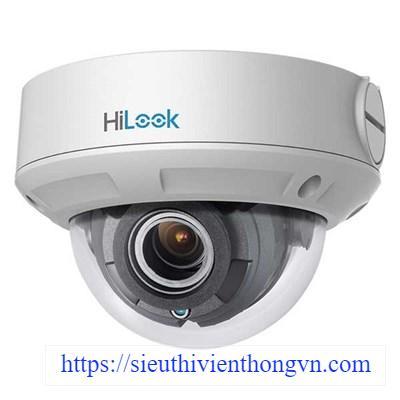

Camera IP Dome hồng ngoại 5.0 Megapixel HILOOK IPC-D650H-V
- Cảm biến hình ảnh: 1/2.7-inch Progressive CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H265/H.264+ & H.264.
- Ống kính: Ống kính thay đổi tiêu cự 2.8~12mm (thay đổi tiêu cự thủ công).
- Tầm quan sát hồng ngoại: Lên đến 30 mét.
- Hỗ trợ 2 luồng dữ liệu.
- Hỗ trợ chức năng chống ngược sáng WDR 120dB.
- Hỗ trợ chức năng giảm nhiễu số 3D DNR, bù sáng BLC.
- Chế độ ngày/đêm: Đặt theo lịch, tự động, ngày, đêm.
- Hỗ trợ khe cắm thẻ nhớ, tối đa 128Gb.
- Hỗ trợ giám sát bằng ứng dụng HiLook trên điện thoại.
- Tiêu chuẩn chống bụi và nước: IP67 (Thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cung cấp nguồn qua Ethernet (PoE).
- Nguồn điện: DC12V.
- Chất liệu: Kim loại.
Đặc tính kỹ thuật
| Model | IPC-D650H-V |
| Camera quan sát | |
| Image Sensor | 1/2.7-inch progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000s |
| Slow Shutter | Yes |
| Day &Night | IR cut filter |
| DNR (Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | 120 dB |
| Angle Adjustment(Bracket) | Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Aperture | F2.0 |
| Focus | Manual |
| FOV | Horizontal FOV 98° to 28°, vertical FOV 71° to 21°, diagonal FOV 130° to 35° |
| Lens Mount | Φ14 |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream:H.265/H.264 Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image | |
| Max. Resolution | 2560 × 1920 |
| Main Stream Max. Frame Rate | 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720) 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720) |
| Sub-stream Max. Frame Rate | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled, day, night |
| Network | |
| Network Storage | Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS) |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6UDP, Bonjour |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | 5.5.52 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator, and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Video Out | 1Vp-p Composite Output(75Ω/BNC) |
| Reset Button | Yes |
| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, class 3 |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6W PoE (802.3af, 36 to 57 V), 0.3 A to 0.1 A, max. 8W |
| Protection Level | IP67, IK10 |
| Material | Bubble: plastic, front cover & bottom base: metal |
| Dimensions | Camera IP: Φ141 mm × 99 mm With package: 140 mm × 140 mm × 154 mm |
| Weight | Camera IP: approx. 800g With package: approx. 105g |
- Bảo hành: 24 tháng.
