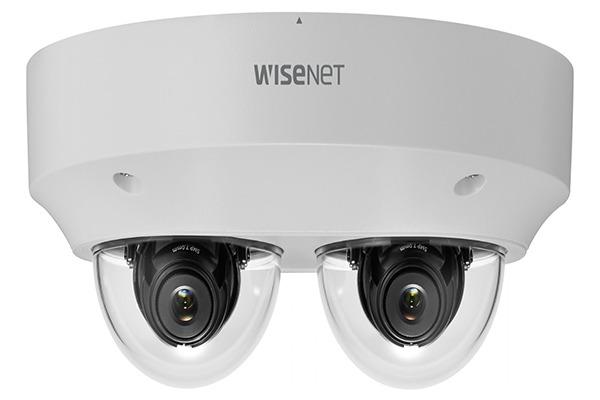

Camera IP Dome Multi-directional 5 Megapixel Hanwha Techwin WISENET PNM-9000VD
- Cảm biến hình ảnh: 1/1.8 inch CMOS.
- Chuẩn nén hình ảnh: H.264/H.265/MJPEG.
- Ống kính: 3.7mm, 4.6mm, 7mm (fixed).
- Độ phân giải: 5.0 Megapixel.
- Độ nhạy sáng: Color: 0.16Lux (F1.6, 1/30sec, 30IRE) B/W: 0.16Lux (F1.6, 1/30sec, 30IRE).
- Chức năng camera quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng che vùng riêng tư Privacy Masking.
- Chức năng chống ngược sáng ATW.
- Chức năng phân tích Video thông minh.
- Hỗ trợ WiseStream II.
- Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ tối đa 256GB.
- Hỗ trợ hệ điều hành: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12.
- Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chất liệu: White / Aluminum.
- Kích thước: Ø197.6 x 84mm.
- Trọng lượng: 1250g.
Đặc tính kỹ thuật
| Model | PNM-9000VD |
| VIDEO | |
| Imaging Device | 1/1.8 inch 5MP CMOS |
| Effective Pixels | 2616(H) x 1976(V) |
| Minimum Illumination | Color: 0.16Lux (F1.6, 1/30sec, 30IRE) B/W: 0.16Lux (F1.6, 1/30sec, 30IRE) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480 for installation |
| OPERATIONAL | |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Backlight Compensation | WDR, BLC, HLC, SSDR |
| Digital Noise Reduction | SSNR V |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Directional/Virtual Line detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main / Baseline / High, MJPEG |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 |
| Smart Codec | Manual (5ea area), WiseStreamII |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control |
| MJPEG: Target bitrate level control | |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast (20 users) / Multicast |
| Multiple streaming (Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, |
| 802.1X authentication (EAP-TLS, EAP-LEAP), Device certificate (Hanwha Techwin Root CA) | |
| Edge Storage | Micro SD/SDHC/SDXC slot, maximum 256GB, 1 for each channel, total 2 slots |
| Application Programming Interface | ONVIF Profile S/G SUNAPI (HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS :Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser : Google Chrome Supported Browser : MicrosoftInternet Explorer 11, Microsoft Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| ELECTRICAL | |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: maximum 12.95W, typical 12.00W |
| MECHANICAL | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Dimensions | Ø197.6 x 84mm |
| Weight | 1250g |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
