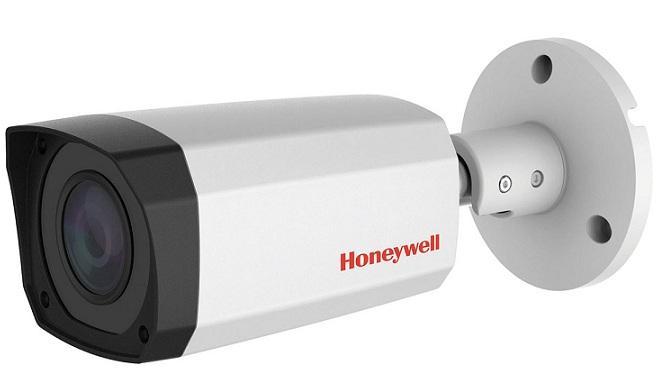

Camera IP hồng ngoại 3.0 Megapixel HONEYWELL HBD3PR2
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải: 3 Megapixel (2304×1296).
- Chuẩn nén hình ảnh: H.264/MJPEG.
- Ống kính: 2.7-12mm Motorized focus/zoom.
- Độ nhạy sáng tối thiểu: 0.01Lux/F1.4 (color), 0Lux(IR on).
- Tốc độ khung hình: 3MP (1-20 fps), 1080p (1-25/30 fps).
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng chống ngược sáng thực WDR.
- Chức năng tự động cân chỉnh độ sáng.
- Hỗ trợ 20 người sử dụng cùng lúc.
- Hỗ trợ chuẩn ONVIF S G .
- Hỗ trợ microSD max 128GB.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nhiệt độ hoạt động: -30 ~ 60ºC
- Nguồn điện: 12VDC và PoE.
Đặc tính kỹ thuật
| Model | HBD3PR2 |
| Camera | |
| Image Sensor | 1/3 inch Progressive scan 3 MP CMOS |
| Number of Pixels | 2304 (H) × 1296 (V) |
| Minimum illumination | 0.1 lux, F1.4 (Colour); 0 lux (IR LEDs on) |
| S/N Ratio | More than 50 dB |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)–1/100000 s |
| IR Distance | 30m |
| Day/Night | Auto(ICR)/Colour/BW |
| Backlight Compensation | BLC/HLC/DWDR |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | Up to 4 areas |
| Lens | 2.7-12 mm |
| Max. Aperture | F1.4 |
| Focus Control | Auto |
| Horizontal angle of view | 86°–28° |
| Lens type | Motorized focus/zoom |
| Video | |
| Video Compression | H.264 (Main/High/Baseline Profile)/ MJPEG |
| Resolution | 3 MP (2304×1296), 1080p (1920×1080), 720p (1280×720), D1(704×576/704×480), CIF (352×288/352×240) |
| Bit rate (H.264) | H.264: 4–8192 kbps |
| Corridor mode | Yes |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, 802.1X (excludes HBD1PR1) |
| Compatibility | ONVIF Profile S, Profile G |
| Max. user access | 20 users |
| Mobile devices | HonView Touch for iPhone and Android devices |
| Others | |
| Power supply | PoE (802.3af), 12 VDC |
| Power Consumption | 8.5W max. (IR LEDs on) |
| Memory Slot | microSD (128 GB) |
| Ingress Protection | IP66 |
| Dimensions | 214.8 × 90.4 mm |
| Weight | 0.65 kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
