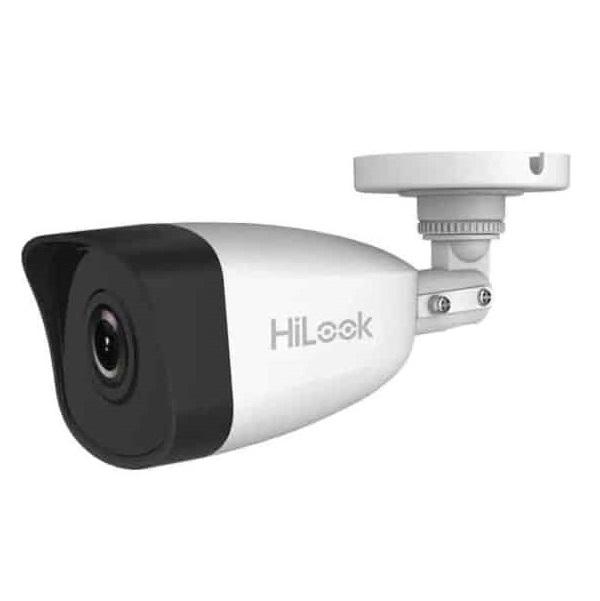

Camera IP hồng ngoại 5.0 Megapixel HILOOK IPC-B150H-M
- Cảm biến hình ảnh: 1/2.7-inch progressive scan CMOS.
- Độ phân giải camera ip: 5.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H265/H.264+/H.264.
- Ống kính: 2.8mm, 4mm, 6mm.
- Tầm quan sát hồng ngoại: Lên đến 30 mét.
- Hỗ trợ chức năng chống ngược sáng WDR 120dB.
- Hỗ trợ 2 luồng dữ liệu.
- Hỗ trợ chức năng giảm nhiễu số 3D DNR, bù sáng BLC.
- Chế độ ngày/đêm: Đặt theo lịch, tự động, ngày, đêm.
- Không hỗ trợ khe cắm thẻ nhớ.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ giám sát bằng ứng dụng HiLook trên điện thoại.
- Chức năng cung cấp nguồn qua Ethernet (PoE).
- Nguồn điện: DC12V.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.7-inch progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.028 lux@(F2.0, AGC ON) |
| Shutter Speed | 1/3s to 1/100, 000s |
| Slow Shutter | Yes |
| Day &Night | IR cut filter |
| DNR (Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | 120 dB |
| Angle Adjustment(Bracket) | Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.8 mm, 4 mm, 6 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV 100°, vertical FOV 74°, diagonal FOV 130° 4 mm, horizontal FOV 75°, vertical FOV 55°, diagonal FOV 98° 6 mm, horizontal FOV 49°, vertical FOV 37°, diagonal FOV 60° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream:H.265/H.264 Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image | |
| Max. Resolution | 2560 × 1920 |
| Main Stream Max. Frame Rate | 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720) 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720 |
| Sub-stream Max. Frame Rate | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled, day, night |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6UDP, Bonjour |
| General Function | Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | 5.5.52 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator, and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W |
| Protection Level | IP67 |
| Material | Front cover: metal, back cover: metal, bracket: metal |
| Dimensions | Camera: Ø 71.4 mm × 181.4 mm (Ø 2.8' × 7.1') With package: 216 mm × 121 mm × 118 mm (8.5' × 4.8' × 4.6') |
| Weight | Camera: approx. 400 g (0.9 lb.) With package: approx: 600 g (1.3 lb.) |
- Bảo hành: 24 tháng.
