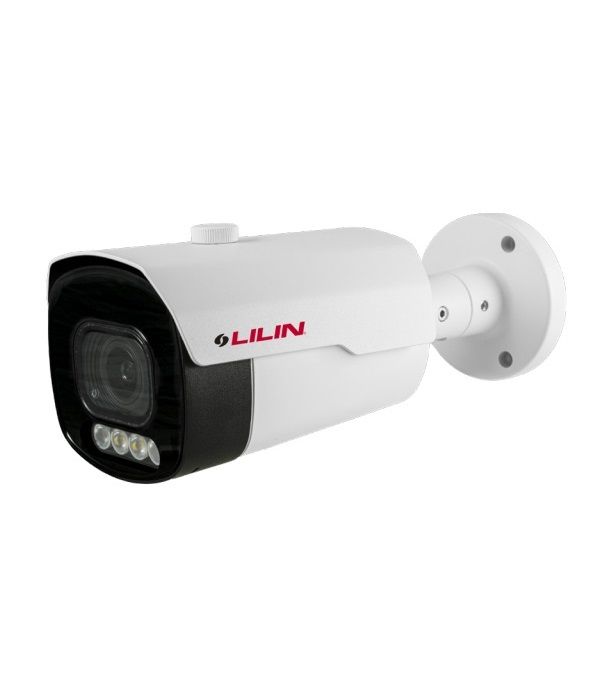

Camera IP hồng ngoại 8.0 Megapixel LILIN V1W9282AX
- Cảm biến hình ảnh: 1/2.8 inch CMOS image sensor.
- Độ phân giải: 8.0 megapixel.
- Hỗ trợ các tính năng camera: Chức năng giảm nhiễu kỹ thật số 3D-NR, chống ngược sáng 2D WDR, AGC.
- Ống kính: 2.8~12mm.
- Tầm quan sát hồng ngoại: 35 mét.
- Tầm quan sát warm light: 30 mét.
- Hỗ trợ PoE.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Resolution | 4K |
| Focal length | 2.8~12mm |
| Aperture | F1.2 |
| Iris Control | Fixed |
| Angle of View (HxVxD) | 107° (W) – 34° (T) 56° (W) – 19° (T) 129° (W) – 39° (T) |
| Pick Up Element | 1/2.8 inch CMOS image sensor |
| Effective Pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| Min. Illumination | Color: 0.09 Lux at F1.2; B/W: 0.03 Lux at F1.2; 0 Lux with IR LED ON |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| EV (Exposure Value) | Adjustable |
| S/N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| Auto Focus | Support |
| Infrared LED | IR: 850nm, Warm Light: 3000K |
| Smart IR | IR: 35M, Warm Light: 30M |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 |
| CE Certification | Yes, EMI Class A |
| FCC Certification | Yes, EMI Class A |
| UKCA Certification | Yes, EMI Class A |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating Temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage Temperature | -25°C – +60°C (-13°F – 140°F) |
| Humidity | 0% – 90% RH |
| Dimension | 88(W) × 91(H) × 241(D) mm |
| Weight | 695g |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 12.6W / PoE, 14.2W |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| Artificial Intelligence | People / Car / Detection Zone / Detection Line |
| Event Triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Push Service / Global Counter / Virtual Input / IR LED |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Mobile Application | Integrated to LILIN mobile app with iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
- Bảo hành: 24 tháng.
