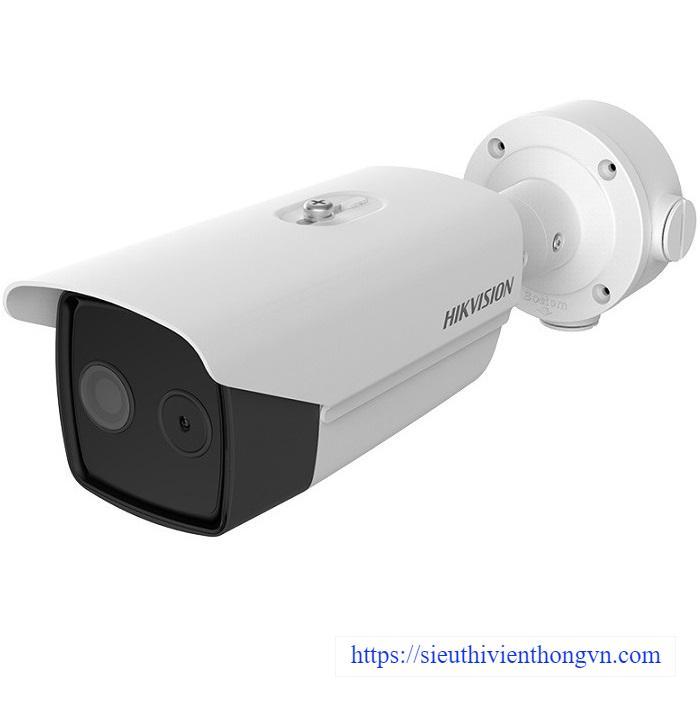

Camera IP hồng ngoại đo thân nhiệt HIKVISION DS-2TD2617B-3/PA(B)
- Ống kính ảnh nhiệt:
+ Độ phân giải: 160 × 120;
+ Tiêu cự: 3mm;
+ POV: 25°×18.7°.
- Ống kính quang học:
+ Độ phân giải: 2688 x 1520;
+ Tiêu cự 4mm.
- Tầm quan sát hồng ngoại: Lên đến 40 mét.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Hình thức video: Bi-spectrum Image Fusion.
- Nhiệt độ sai lệch: ±0.5℃.
- Thermographic Range：30-45℃.
- Chiều cao lắp đặt: 1.5m.
- Khoảng cách khuôn mặt: 1m.
Đặc tính kỹ thuật
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 160 × 120 (the resolution of output image is 320 × 240) |
| Pixel Interval | 17μm |
| Response Waveband | 8μm to 14μm |
| NETD (Noise Equivalent Temperature Difference) | ≤ 40 mk (@25 °C,F# = 1.1) |
| Lens (Focal Length) | 3.1 mm |
| IFOV | 5.48 mrad |
| Field of View | 50° × 37.2° (H × V) |
| Min. Focusing Distance | 0.2 m |
| Aperture | F 1.1 |
| Optical Module | |
| Max. Image Resolution | 2688 × 1520 |
| Image Sensor | 1/2.7' Progressive Scan CMOS |
| Min. Illumination | Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
| Shutter Speed | 1 s to 1/100,000 s |
| Lens (Focal Length) | 4 mm |
| Field of View | 84° × 44.8° (H × V) |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on optical image |
| Smart Function | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Range | 30°C to +45 °C |
| Temperature Accuracy | ± 0.5 °C |
| Fire Detection | Dynamic fire point detection, up to 10 fire points detectable |
| Infrared | |
| IR Distance | Up to 40 m |
| IR Intensity and Angle | Automatically adjusted |
| Network | |
| Main Stream | Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720) Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240 |
| Sub-stream | Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 704 × 576, 352 × 288, 320 × 240 |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G.711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Simultaneous Live View | Up to 20 |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security Measures | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Integration | |
| Alarm Input | 2-ch inputs (0-5 VDC) |
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm |
| Audio Input | 1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ |
| Audio Output | Linear level, impedance: 600 Ω |
| Reset | 1, Reset Button |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface |
| SD Memory Card | Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB) Supports manual/alarm recording |
| Analog Video Output | 1.0 V [p-p]/75 Ω, PAL/NTSC |
| Application Programming | Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE9+, Chrome 31-44, Firefox 30-51, Safari 5.02+(mac) |
| General | |
| Menu language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power | 12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3) |
| Power Consumption | 12 VDC ± 20%: 0.65 A, max. 7.5W PoE (802.3af, class 3): 42.5V to 57V, 0.14A to 0.22A, max. 8W |
| Working Temperature/Humidity | Temperature: -20 °C to 50 °C Humidity: 95% or less |
| Protection Level | IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions | 358.3 mm × 113.5 mm × 115.2 mm (14.10' × 4.47' × 4.53') |
| Weight | Approx. 1.76 kg (3.88 lb) |
- Bảo hành: 24 tháng.
