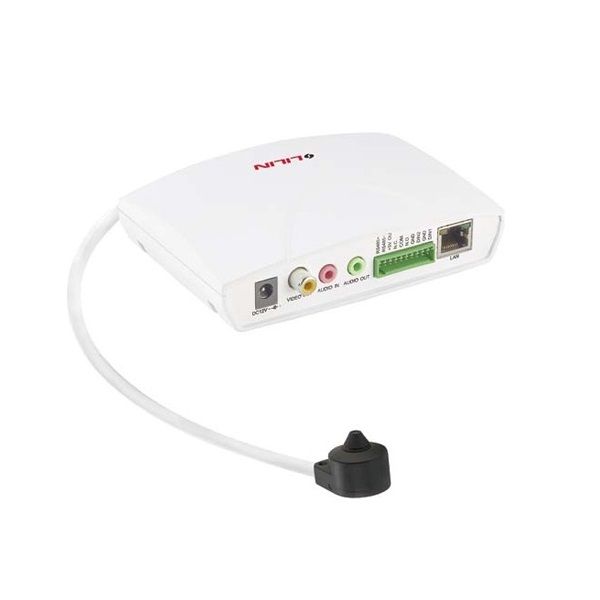

Camera IP ngụy trang 2.0 Megapixel LILIN P3C0122P3
- Cảm biến hình ảnh: 1/2.9″ CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén: H.265/HEVC và H.264/AVC.
- Ống kính cố định: 3.7mm.
- Giảm nhiễu 3D noise reduction (MCTF).
- Chống ngược sáng HDR 120dB.
- Hỗ trợ Digital PTZ.
- Hỗ trợ tính năng thông minh IVS.
- Tính năng phát hiện chuyển động Motion Dectection.
- Chức năng quan sát Day & Night.
- Hỗ trợ âm thanh 2 chiều.
- Hỗ trợ chuẩn ONVIF Profile S, Profile T, G.
- Nguồn điện: DC12V ±10%/ PoE (IEEE 802.3af compliant).
Thông số kỹ thuật
| Model | P3C0122P3 |
| Min. illumination/Low Light Mode (Colour) | Color: 0.1 Lux at F2.8; B/W: 0.02 Lux at F2.8 |
| Focal Length | 3.7mm |
| Iris | F2.8 |
| Iris Control | Fixed IRIS |
| Angle of View | 88.5° (H), 45.8° (V), 106.4° (D) |
| Pick Up Element | 1/2.9″ CMOS image sensor |
| Effective pixels | 1920 (H) × 1080 (V) = 2,073,600 (Pixels) |
| Web browser | Microsoft® Internet Explorer® 9 or above |
| Audio Input / Output | Mono, 1.4 Vp-p, 50 KΩ, 3.5mm phone jack |
| Audio | Two-way Audio, G.711 u-law / PCM, External Microphone Required |
| Alarm Input / output | Digital 2 input (TTL, +3 – 5VDC) / 1 Output (Relay dry contact N.O. / N.C., Load max. 24VDC/1A) |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA connector |
| Video Compression | H.265/HEVC profile, H.264 profile , Motion JPEG |
| Number of streams | 4 |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 HDR mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Back Light Compensation | Yes |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x4 (by normal mode) |
| High Dynamic Range (HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| EV (Exposure Value) | Adjustable |
| Lens distorsion correction (LDC) | supports |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (recording) | Support Micro SD/SDHC card for circular recording (card is not included) |
| IVS Basic 1.0 | Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection, Object Counting |
| Alarm event triggers | Motion / Tamper / Alarm / Network lost detection / SmartEvent |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm / SNMP Trap / Push service notification |
| Control interface | RS-485, Half-Duplex, support MLP2, Pelco D/P protocols |
| Network Interface/ Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
| Max number of online users | 10 simultaneous users |
| Privacy Masking | Off / on (4 zones) |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Operating temperature | -25°C – +50°C (-13°F – 122°F) |
| Storage temperature | -25°C – +50°C (-13°F – 122°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Dimensions | Main module: 130(W) × 35(H) × 93(D) mm |
| Image sensor module: Ø25 × 32mm | |
| Weight | Main module: 210g, Image sensor module: 188g |
- Bảo hành: 36 tháng.
