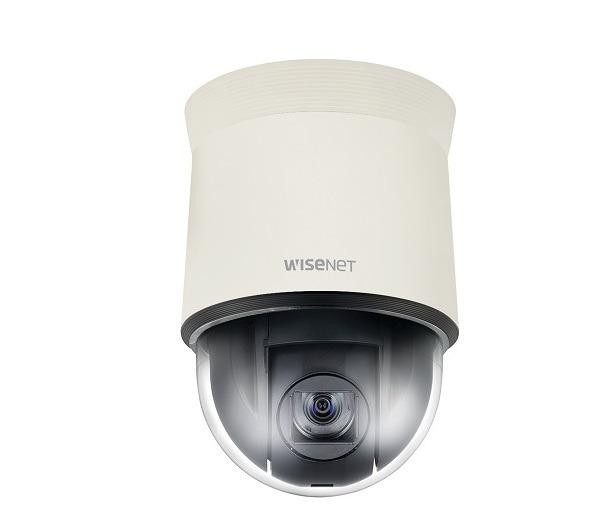

Camera IP Speed Dome 2.0 Megapixel Hanwha Techwin WISENET QNP-6230/VAP
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Ống kính quang học: 4.44 ~ 102.2mm.
- Zoom quang học: 23x tự động lấy nét.
- Hỗ trợ thẻ nhớ đến 256GB.
- Hỗ trợ Multiple streaming, WiseStreamII.
- Hỗ trợ chế độ camera quan sát ngày và đêm (ICR).
- Hỗ trợ chức năng chống ngược sáng WDR (120dB).
- DIS with Built-in Gyro sensor.
- Tamepring, Motion detection.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10 (QNP-6230 + SHP-3701H only).
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Effective Pixels | 1944(H)x1212(V) |
| Min. Illumination | Color: 0.2Lux(F1.6, 1/30sec) |
| B/W: 0.01 Lux(F1.6, 1/30sec) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~102.2mm(23x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F3.6(Tele) |
| Angular Field of View | H: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 500˚/sec, Manual: 0.024˚/sec~200˚/sec |
| Tilt Range | 210˚(-15˚~195˚) |
| Tilt Speed | Preset: 500˚/sec, Manual: 0.024˚/sec~200˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
| Azimuth | Support |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 24ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Motion detection, Tampering |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| PTZ Preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) |
| MJPEG: Max. 30fps/25fps(60Hz/50Hz) | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(10 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726(ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Recommended Browser: Google Chrome | |
| Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) | |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C~+55°C(-14°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / Less than 90% RH |
| Electrical | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 24VAC |
| Power Consumption | 24VAC: Max 20W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product dimensions | Ø152 x 218mm |
| Weight | 1.7kg |
- Xuất xứ: Việt Nam
- Bảo hành: 24 tháng.
