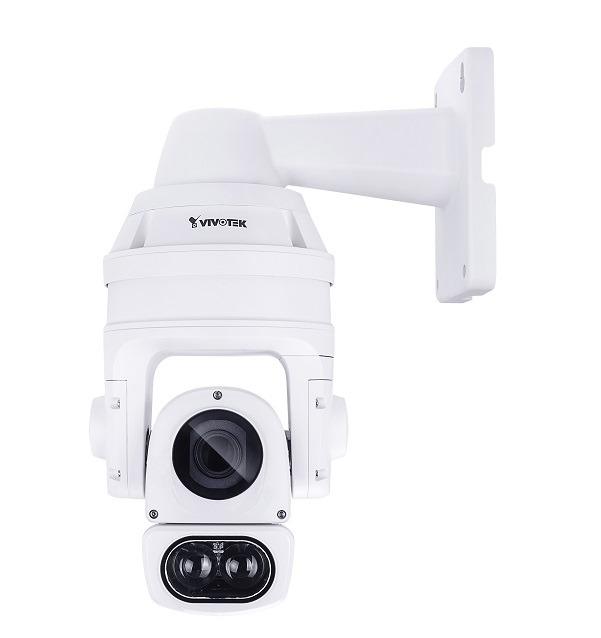

Camera IP Speed Dome hồng ngoại 2.0 Megapixel Vivotek SD9364-EHL-v2
- Cảm biến hình ảnh: 1/3 inch Progressive CMOS.
- Độ phân giải camera ip: 60 fps @ 1080p Full HD.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Ống kính: f = 4.3 ~ 129 mm.
- Zoom quang: 30x.
- Tầm quan sát hồng ngoại: 150 mét.
- Công nghệ chống ngược sáng WDR Pro.
- Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | 1/3 inch Progressive CMOS |
| Max. Resolution | 1920×1080 |
| Lens Type | 30x Optical Zoom, Auto Focus |
| Focal Length | f = 4.3 ~ 129 mm (30x zoom) |
| Aperture | F1.6 ~ F4.7 |
| Iris type | DC-Iris |
| Field of View | 2° ~ 59° (Horizontal) 2° ~ 45° (Vertical) 3° ~ 71° (Diagonal) |
| Shutter Time | 1/8 sec to 1/30,000 sec |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.42 Lux @ F1.6 (Color) 0.01 Lux @ F1.6 (B/W) 0 Lux with IR illumination on |
| Day/Night | Removable IR-cut filter for day & night function |
| Pan Speed | 0.1° ~ 300° / sec. |
| Pan Range | 360° endless |
| Tilt Speed | 0.1° ~ 300° / sec |
| Tilt Range | 220° (-110° ~ +110°) |
| Preset Locations | 256 preset locations 128 presets per tour |
| Pan/Tilt/Zoom Functionalities | 128x digital zoom (4x on IE plug-in, 32x builtin), Auto pan mode, Auto patrol mode |
| IR Illuminators | Built-in IR Illuminators up to 150 meters with Smart IR II, IR LED*2 |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H265, H264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: 60 fps @ 1920×1080 MJPEG: 30 fps @ 1920×1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 54 dB |
| Dynamic Range | 110 dB |
| Video Streaming | Adjustable resolution, quality and bitrate; Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, EIS, HLC |
| Audio | |
| Audio Capability | Two-way Audio |
| Compression | G.711, G.726 |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, MicroSD card life expectancy |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and Micro SD card |
| General | |
| Connectors | RJ-45 cable connector for Network 10/100 Mbps PoE connection*1 Audio input*1 Audio output*1 AC/DC 24V power input*1 Digital input*4 Digital output*2 RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)*1 |
| LED Indicator | System power and status indicator |
| Power Input | PoH/PoE (95W) AC/DC 24V |
| Power Consumption | PoH/PoE (95W): Max. 70 W (Heater on) Max. 51 W (Heater off) AC/DC 24V: Max. 63 W (Heater on) Max. 45 W (Heater off) |
| Dimensions | 237 x 364 mm |
| Weight | 5.7 kg (without bracket) |
| Casing | IP66, IK10, NEMA 4X |
- Bảo hành: 36 tháng.
