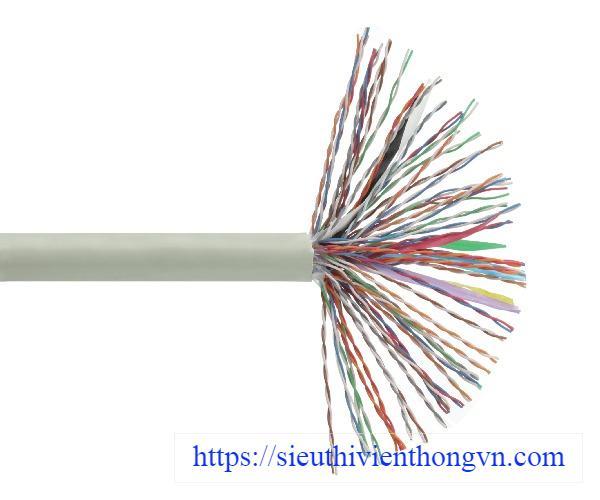

Cáp điện thoại 50 đôi VIVANCO CAT.3 (PVC, Grey)
- Cáp điện thoại 50 đôi, PVC, màu xám, 305 mét/cuộn.
- CAT.3 U/UTP 50 Pair Backbone Cable, PVC, Grey, 305m/Drum.
- Part number: VCCAUU35PVG3
Compliance
- ANSI/ICEA S-90-661
- TIA/EIA-568-C.2
Construction
- U/UTP
- 17.0mm 50 pair max jacket diameter
Features and Benefits
- Suitable for Voice application
- 25 year system warranty
Electrical Performance | |
Direct Current Resistance of each Conductor | <14.8Ω/100m |
Operating Capacitance | ≤6.6nF/100m |
Unbalanced Capacitance | ≤330pF/100m |
Impedance (ohms) | 1-100MHz 100±15% |
NVP | 68% |
Delay Deviation | ≤45ns |
Physical Performance | |
Items | Specification |
Min. Bend Radius | 15 times of max jacket diameter |
Installation Temperature | 0 to 50℃(+32 to 122°F) |
Storage Temperature | -20 to 75℃(-4 to 167°F) |
Operating Temperature | -20 to 60℃(-4 to 140°F) |
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
