Cáp mạng Alantek Cat6A F/UTP LSZH (Grey)

Cáp mạng Alantek Cat6A F/UTP LSZH (Grey)

  • MS 000001808
  • ALANTEK
Giá : 5,070,000 vnđ (Đã bao gồm VAT)

Cáp mạng Alantek Cat6A F/UTP LSZH (Grey)

Cáp mạng Alantek Cat6A F/UTP LSZH (Grey)

Part Number: 301-6AFU08-L3GY

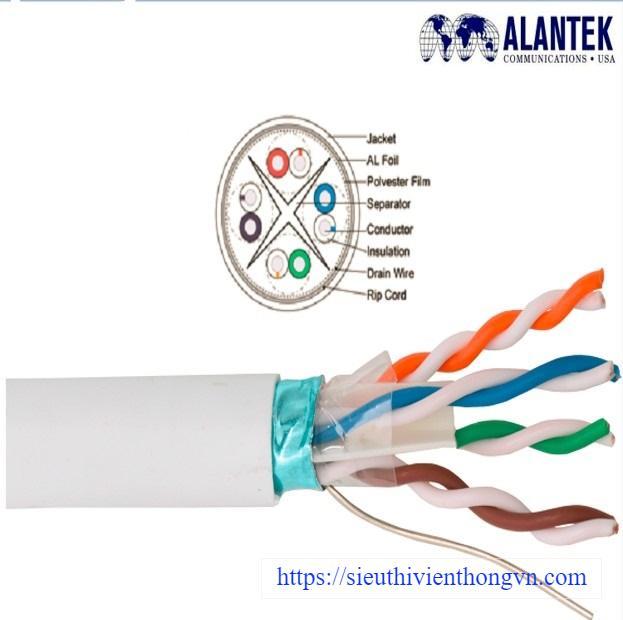

- Alantek Cat6A Twisted Pair Cable is designed to support high-bandwidth application up to 10Gigabit Ethernet. The cable is composed of 23 AWG bare solid copper conductors insulated with High Density Polyethylene (HDPE) insulation. The 4 twisted pairs are separated by a flexible PE separator, an additional layer of Aluminium foil covers the 4 pairs and is completed with an Outer Jacket.

- Application: Horizontal wiring, suitable for application up to 10 Gigabit Ethernet. POE up to 90W.

- Standards: ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173.

- Packaging: 500m/reel.

- Color: Grey.

Specifications

- Conductor

o Material: Solid Bare Copper.

o Size: 23 AWG (0.57mm) x 4 Pair.

- Insulation

o Material: HDP.

o Dimension: 1.140 ± 0.05 mm (Dia).

- Jacket

o Material: LSZH.

o Dimension: 7.5 ± 0.3 mm (Dia).

- Drain Wire

o Material: Tinned Copper.

o Dimension: 1/0.4mm.

- Sản xuất tại Trung Quốc.
