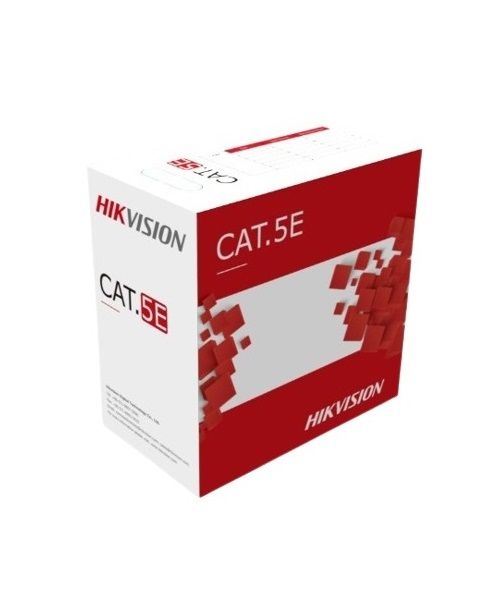

Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E

Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E

  • MS 0016425
  • HIKVISION
Giá : Liên hệ

Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E

Cáp mạng CAT5E UTP Outdoor HIKVISION DS-1LN5EO-UU/E

- 305m CAT5E UTP Outdoor Network Cable (Solid Copper, 0.5 mm)

- Full diameter and full length

- Quality verified by Fluke test

- Guaranteed long PoE transmission distance

- 305 m CAT5E UTP Outdoor Network Cable

Specifications

ModelDS-1LN5EO-UU/E
General
Core Color1 White-Blue /Blue 2 White-Orange/ Orange 3 White-Green / Green 4 White-Brown/ Brown
Packing Length(305±0.5)m
Rip-CordYes
Drain WireNo
Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥10 Elongation(%) ≥300
Aging Period(℃×hrs) 100℃×24h×10d
After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125
Cold bend(-20±2℃×4h) 8×Cable O.D.,No visible cracks
Electrical Characteristics (20℃)1.0-100.0MHz Impedance(Ω) 100±15
1.0-100.0MHz Delay Skew (ns/100m) ≤552
DC Resistance(Ω/100m) max 9.5
DC Conductor Resistance Unbalance(%) max 2.0
Conductor
MaterialSolid-Bare Copper Content 99.99%
Nom.O.D.(Mm)0.5±0.01
Insulation
MaterialHDPE
Diameter0.88±0.03mm
Sheath
Thickness0.55±0.03 mm
External O.D.5.0±0.3 mm
SurfaceClean, Frap, Satiation
MaterialPE
ColorBlack
Surface Printing
Letter Height2.8mm
ColorWhite
Print Error & Space≤±0.5%, 1m
