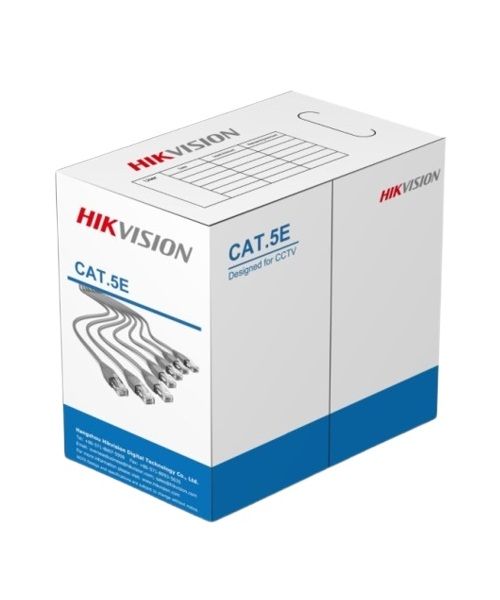

Cáp mạng CAT5E U/UTP HIKVISION DS-1LN5EUEC0
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
- Compliant with RoHS 2.0.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 80-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 90-meter channel test.
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Specifications
| Model | DS-1LN5EUEC0 |
| Category | Cat.5E |
| Reference standard | ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0 |
| Fire resistance | No |
| Rip-cord | Yes |
| Cable length | 305m |
| Conductor | |
| Material | Solid-Bare Copper (99.95%) |
| Diameter | 0.45 ± 0.01 mm 25AWG |
| Insulation | |
| Material | HDPE |
| Diameter | 0.82 ± 0.05 mm |
| Sheath | |
| Thickness | 0.50 ± 0.05 mm |
| Diameter | 4.70 ± 0.50 mm |
| Material | PVC |
| Color | Grey |
| Sheath physical properties | |
| Before aging | Tensile strength ≥ 13.5 Mpa Elongation ≥ 150% |
| Aging period | 100°C × 24h × 10d |
| After aging | Tensile strength ≥ 12.5 Mpa Elongation ≥ 125% |
| Cold bend | -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks |
