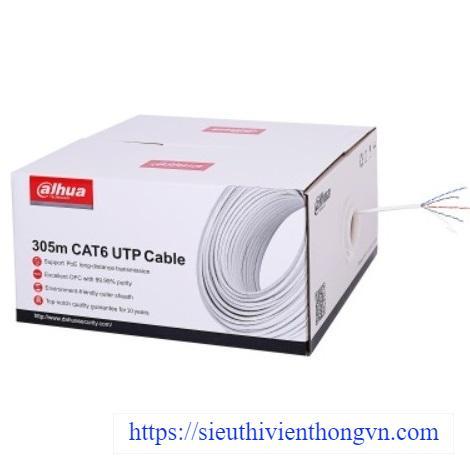

Cáp mạng CAT6 UTP DAHUA PFM920I-6UN-N
- Hỗ trợ PoE đến 160m.
- 99.99% đồng nguyên chất.
- Khả năng sử dụng lên đến 10 năm.
- Đường kính lõi đồng 0.53*4P±0.01mm.
- Độ dày vỏ 0.4mm.
- Đường kính dây 6.0±0.5 mm.
- Vỏ cách điện lõi dây: HDPE.
- Vật liệu vỏ dây: PVC.
- Chiều dài cuộn dây: 305m (1000.66ft).
Thông số kỹ thuật
| Model | DH-PFM920I-6UN-N |
| Structure | |
| Conductor | |
| Material | OFC(oxygen free copper) |
| Structure | 4P*0.53±0.01mm |
| Insulation | |
| Material | HDPE |
| Min. average thickness | 0.21mm |
| Diameter | 0.95mm0.05mm |
| Color(4 Pairs) | Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown |
| Jacket | |
| Material | PVC |
| Min. average thickness | 0.40mm |
| Diameter | 6.0±0.50mm |
| Surface | Smooth, full and tight |
| Color | White/Grey |
| General | |
| Length | 305m(1000.66ft) |
| N.W. | 11.25kg(24.8lb) |
| Packaging dimension | 412mmx412mmx215mm(16.22”x16.22”x8.46”) |
| Weight (with packaging) | 12.75kg(28.11lb) |
| Mechanical properties | |
| Insulation | |
| Tensile strength | ≥16MPa |
| Elongation at break | ≥300% |
| Peeling property | No damage to insulation or conductor |
| Jacket | |
| Tensile strength | Before aging: ≥13.5MPa After aging: ≥12.5MPa Before aging: ≥13.5MPa Retention rate of tensile strength after aging: ≥85% |
| Elongation at break | Before aging: ≥150% After aging: ≥125% Before aging: ≥150% Retention rate of elongation at break after aging: ≥50% |
| Aging condition | 100℃*24h*7d |
| Peeling property | No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. No damage to insulation, cold bending (-15C *4h), the outer diameter of the cable is 8 times, without cracking. |
| Electrical performance (20℃) | |
| Characteristic impedance (1-250MHz) | 100±15Ω |
| DC resistance | ≤9.38Ω/100m |
| Max. unbalance rate of line pairs’ direct current | ≤5% |
| Time delay | ≤45ns/100m |
| Max. mutual capacitance | 5.6nF/100m |
| Min. insulation resistance | 5000MΩ·km |
- Bảo hành: 24 tháng.
