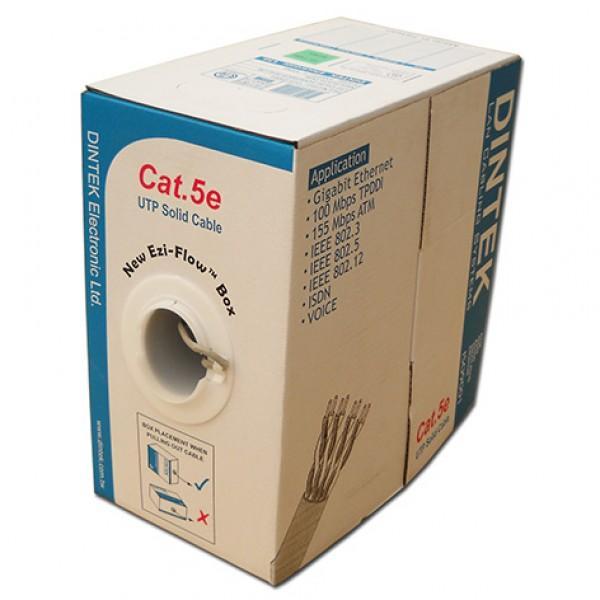

Cáp mạng Dintek CAT.5E UTP (1101-03003)

-       Cáp mạng CAT.5E UTP Dintek 4-pairs, 305m/thùng.

-       Khoảng cách làm việc dài nhất: 150 mét.

Application:

-       Voice

-       ISDN

-       10Base T(IEEE 802.3)

-       Fast Ethernet(IEEE802.3)

-       100Vg-AnyLAN(IEEE 802.12)

-       Token Ring(IEEE 802.5)

-       TP-PMD(ANSI X3T9.5)

-       100Base-T Ethernet(IEEE 802.3u)

-       155/622 Mbps ATM

-       1000Base-T

-       550 MHz Broadband video

Industry Standard:

-       UL, ETL Verified

-       TIA/EIA 568B.2

-       ISO/IEC 11801

-       EN 50173

LAN Cabling Systems

Product  Electrical Characteristics:

-       Impedance:100±15 ohms

-       Resistance Unbalance 100m: 5% max.

-       Mutual Capacitance, max. nf/ 100m: 5.6

-       DC Resistance, max. ohms/100m: 9.38

-       Capacitance Unbalance(Pair to Ground): 330pf/ 100m max.

Cable Data:

-       No. of Pairs: 4

-       Jacket Color : Gray

-       Insulation Thickness: 0.195±0.01mm

-       Nom.O.D.: 5.0±0.2mm

-       Flame Rating: CM

Sản xuất tại Taiwan
