Cáp mạng Dintek CAT.6 U-FTP (1107-04004CH)

Cáp mạng Dintek CAT.6 U-FTP (1107-04004CH)

  • MS 000008357
  • Dintek
Giá : 5,480,000 vnđ (Đã bao gồm VAT)

Cáp mạng Dintek CAT.6 U-FTP (1107-04004CH)

Cáp mạng Dintek CAT.6 U-FTP (1107-04004CH)

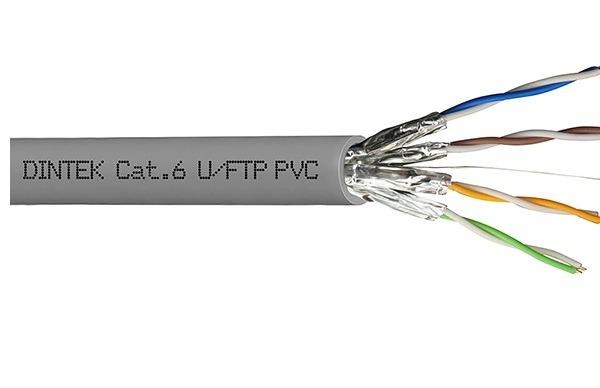

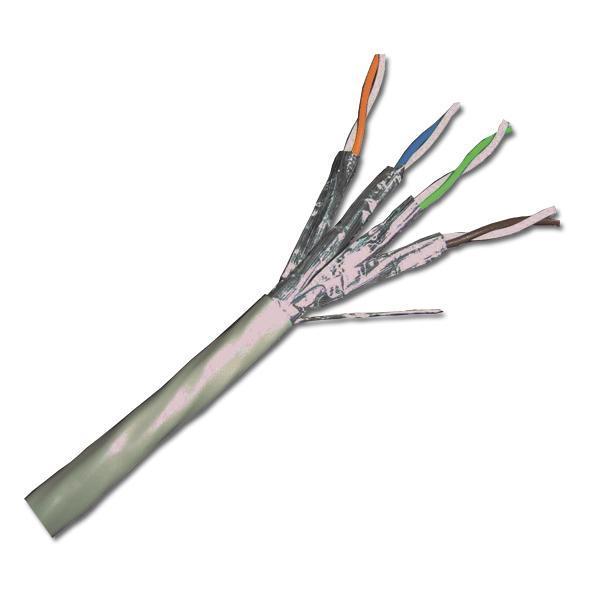

-       Cáp mạng Dintek CAT.6  U-FTP 4-pairs, bọc nhôm chống nhiễu từng đôi cáp, 305m/cuộn.

Application:

-       Voice

-       Fast Ethernet(IEEE802.3u)

-       100Vg-AnyLAN(IEEE 802.12)

-       Token Ring(IEEE 802.5)

-       TP-PMD(ANSI X3T9.5)

-       100Base-T Ethernet(IEEE 802.5)

-       155/622 Mbps 1.2/ 2.4 Gbps ATM

-       1000Base-T Ethernet

-       550 MHz Broadband video

Industry Standard:

-       According to UL444 Communications Cables, UL AWM  style 2835

-       TIA/EIA 568B.2-1

Product  Electrical Characteristics:

-       Impedance:100±15 ohms

-       Mutual Capacitance: nom. 13.6pf/ft

-       DC Resistance: max. 6.8ohm/100m at 20°C

-       Voltage rating: 30V

-       Rated temperature: 60°C

Cable Data:

-       No. of Pairs: 4 pair

-       Size of conductor: 23AWG (solid anneal copper wire)

-       Overall Diameter:7.4±0.3mm

-       Individual Shielding: Aluminum-foil laminated tape.

-       Jacket material: PVC or LSZH, flame retardant and/or CM grade.

Sản xuất tại Taiwan.
