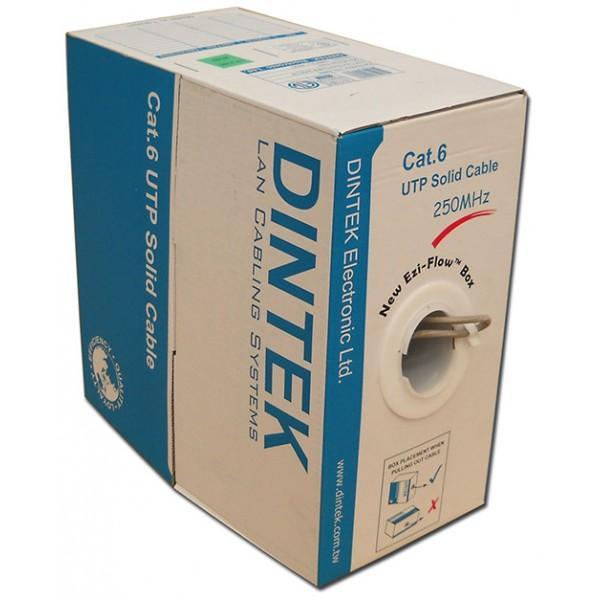

Cáp mạng Dintek CAT.6 UTP (1101-04004)

-       Cáp mạng CAT.6 UTP Dintek 4-pairs, 305m/thùng.

-       Khoảng cách làm việc dài nhất: 150 mét.

Application:

-       Voice

-       Fast Ethernet(IEEE802.3)

-       100Vg-AnyLAN(IEEE 802.12)

-       Token Ring(IEEE 802.5)

-       TP-PMD(ANSI X3T9.5)

-       100Base-T Ethernet(IEEE 802.3u)

-       155/622 Mbps 1.2/ 2.4 Gbps ATM

-       1000Base-T Ethernet

-       550 MHz Broadband video

Industry Standard:

-       UL, ETL Verified

-       TIA/EIA 568B.2-1

-       ISO/IEC 11801

-       EN 50173

Cable Data:

-       No. of Pairs:4

-       Jacket Color:Gray

-       Insulation Thickness: 0.22mm

-       Nom.O.D.:6.5mm

-       Flame Rating:CM

-       Transmission quality verified up to 250MHz

Product  Electrical Characteristics:

-       Impedance:100±15 ohms

-       Mutual Capacitance, max. nf/ 100m: 5.6

-       DC Resistance, max. Ohms/ 100m: 9.38

-       Capacitance Unbalance(Pair to Ground): 330pf/ 100m max.

Sản xuất tại Taiwan
