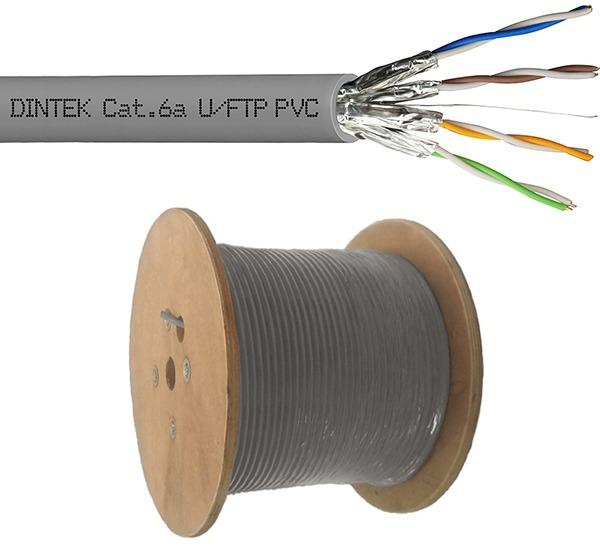

Cáp mạng Dintek CAT.6A FTP (1105-06006)

Giá : 5,650,000 vnđ

Part Number: 1105-06006

- Cáp mạng CAT.6A FTP, 4 pair for 10GB application, 23 AWG, 305m trên rulo nhựa, bọc nhôm chống nhiễu từng đôi, màu xám.

Applications

- 10GBASE-T Ethernet

- 100BASE-TX Fast Ethernet

- 1000BASE-TX Gigabit Ethernet

- 1000BASE-T Gigabit Ethernet

- 10BASE-TX Ethernet

- ATM CB1G

- 155/622 Mbps ATM

- 100 Mbps TP-PMD

- 100VG-AnyLAN

Standards Conformance

- ANSI/TIA-568-2.D Cat.6A

- ISO/IEC 2nd Edition 11801 Class EA

- CENELEC EN 50173-1, CENELEC EN 50288-10-1

- IEC 3rd Edition 61935-1, IEC 2nd Edition 61156-5

- Flame retardancy is verified according to IEC 60332-1-2

- RoHS compliance for the requirement of European Union issued

- directive 2011/65/EU.

Thông số kỹ thuật

Construction
Conductor
Material	Bare Copper
Wire Size	23AWG
Insulation
Material	Foam-Skin PE
Thickness	Nominal:0.42
Unaged Elongation (%)	Min.100%
Unaged Tensile Strength	0.816 Kgf/mm²
Screen Material	Individual foil around each pair
Jacket
Material	Flame Retardant PVC
Thickness	Nominal: 0.52 mm
Diameter	Nominal: 7.3 mm
Color	Gray
Drain Wire	26AWG Stranded Tinned Copper
Physical Ranges
Insulation
Min. Tension Strength	0.816 Kgf/mm²
Min Elongation (%)	Min.100%
Jacket
Min. Tension Strength	Before Aging: min 1.407Kg/mm² After Aging: 75%(PVC) at 100℃ for 168Hrs
Min Elongation (%)	Before Aging: 100% After Aging: 50% at 100℃ for 168Hrs
Cold Bend Test	-20 ± 20C X 4hrs no. crack
Dielectric Strength	1500 V dc/ 2 seconds
Min. Bending Radius	40mm
Max. Pulling Tension	8-10kg
Installation Temperature	-10°C to +60°C
Operating Temperature	-10℃ to +60℃
Electrical
Conductor Resistance	Max.9.38Ω/100m at 200C
DC Resistance Unbalance	2% MAX
Pair-to-Ground Capacitance Unbalance	Max. 160 pF/100m
Dielectric Strength of Insulation	AC 1.7 KV for 2 s
Insulation Resistance Test	Min. 5000MΩ/Km
Mutual Capacitance	Max. 5600 pF/100m
Impedance	1~500MHz:100Ω 15%
