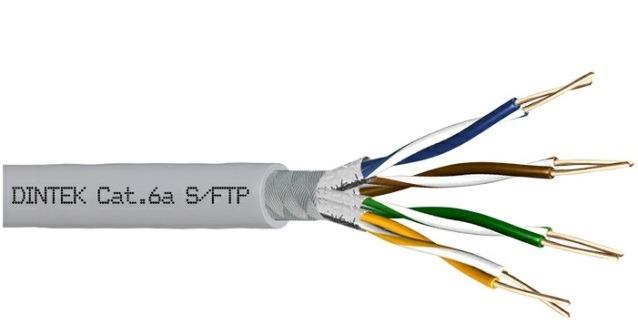

Cáp mạng Dintek CAT.6A S-FTP (1105-06008)
Part Number: 1105-06008
- Cáp mạng CAT.6A S-FTP, 4 pair for 10GB application, 23 AWG, 305m trên rulo nhựa, bọc nhôm chống nhiễu từng đôi, bọc thêm lưới đồng ở ngoài, màu xám.
Application
- 10GBASE-T Ethernet
- 100BASE-TX Fast Ethernet
- 1000BASE-TX Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 10BASE-TX Ethernet
- ATM CB1G
- 155/622 Mbps ATM
- 100 Mbps TP-PMD
- 100VG-AnyLAN
Standards Conformance
- UL Listed
- CENELEC EN 50173-1, CENELEC EN 50288-10-1
- ISO/IEC 2nd Edition 11801 Class EA
- IEC 3rd Edition 61935-1,IEC 2nd edition 61156-5
- All proposed Category 6A Requirements as Per ANSI/TIA,
- ISO/IEC, and CENELEC EN Standard ANSI/TIA-568-2.D Cat.6A
- 3P Certified for Category 6A S/FTP installation Cable
- Flame Retardancy is verified according to IEC 60332-1-2
- Implemented ROHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC
Thông số kỹ thuật
| Construction | |
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 23AWG |
| Insulation | |
| Material | Foam-Skin PE |
| Thickness | Nominal: 0.419 |
| Unaged Elongation (%) | Min.100% |
| Unaged Tensile Strength | 0.816 Kgf/mm² |
| Jacket | |
| Material | PVC |
| Thickness | 0.5 mm |
| Diameter | 7.4 mm |
| Color | Gray |
| Screen Material | Aluminum-Mylar tape and tinned copper braid |
| Physical Ranges | |
| Insulation | |
| Min. Tension Strength | 0.816 Kgf/mm² |
| Min Elongation (%) | Min.100% |
| Jacket | |
| Min. Tension Strength | Before Aging: min 1.407Kg/mm² After Aging: 75% (PVC) at 100°C for 168Hrs |
| Min Elongation (%) | Before Aging: 100% After Aging: 50% at 100°C for 168Hrs |
| Cold Bend Test | -20 ± 20C X 4hrs no. crack |
| Dielectric Strength | 1500 V dc/ 2 seconds |
| Min. Bending Radius | 40mm |
| Max. Pulling Tension | 8-10kg |
| Installation Temperature | -10°C to +60°C |
| Operating Temperature | -10°C to +60°C |
| Electrical | |
| Conductor Resistance | Max.9.38Ω/100m at 200C |
| DC Resistance Unbalance | 2% MAX |
| Pair-to-Ground Capacitance Unbalance | Max. 160 pF/100m |
| Dielectric Strength of Insulation | AC 1.7 KV for 2 s |
| Insulation Resistance Test | Min. 5000MΩ/Km |
| Mutual Capacitance | 5.6nF/100m |
| Impedance | 1~500MHz: 100Ω 15% |
