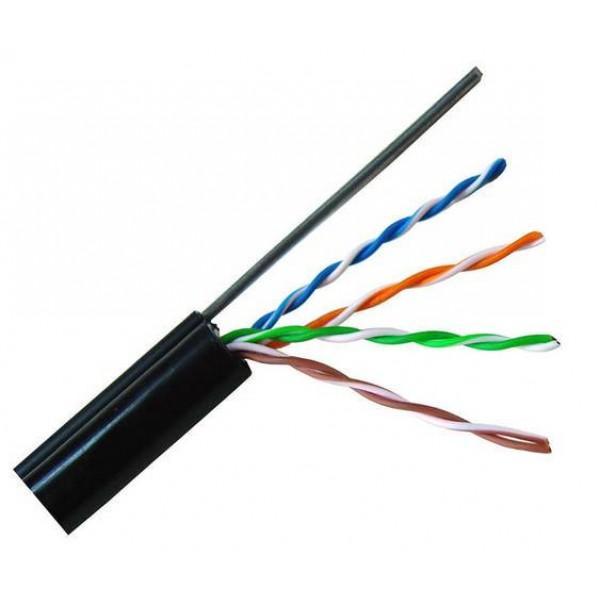

Cáp mạng outdoor Dintek CAT.5E UTP (1101-03011A)

Cáp mạng outdoor Dintek CAT.5E UTP (1101-03011A)

  • HT_00551
  • Dintek
Giá : 2,915,000 vnđ (Đã bao gồm VAT)

-       Cáp mạng CAT.5E UTP 4-pairs dùng ngoài trời, có dây gia cường để treo, móc, 305 mét/cuộn.

-       Outdoor cat.5e 4 pair UTP solid twisted pair cable.

-       Part number: 1101-03011A

Cáp mạng outdoor Dintek CAT.5E UTP (1101-03011A)

-       Cáp mạng CAT.5E UTP 4-pairs dùng ngoài trời, có dây gia cường để treo, móc, 305 mét/cuộn.

-       Outdoor cat.5e 4 pair UTP solid twisted pair cable.

-       Part number: 1101-03011A

Cable Data

-       Twisted pair color code:

o   Pair 1> blue, white/blue ring.

o   Pair 2> orange, white/orange ring

o   Pair 3> green, white/green ring

o   Pair 4> brown, white/brown ring

-       Conductor: 24AWG (1x0.54 ± 0.007mm) solid Annealed copper wire

-       Insulation material: HDPE

-       Diameter of dielectric core: 1.03±0.05mm

-       Insulation thickness: min AVG 0.245mm

-       Number of twist pairs: 4 pairs

-       Assembly: 4 pairs of dielectric core arranged in accordance with the structure figure.

-       Waterblocking: Gel Filled Compound

-       Material of jacket: PE

-       Thickness of jacket: AVG 0.6 mm

-       Nominal O.D.: Approx. 6.0 mm

Electrical Characteristics

-       Impedance: 100 Ohm  15%

-       D.C.R (Max.) : 93.8 Ohm/100m at 20°C

-       D.C.R. Unbalance (Max.) : 5% MAX./100m

-       Temperature Rating : -40°C to 80°C

-       Dielectric strength : DC 500V / 1min or AC 350V / 1min (Between wire and ground)

-       Insulation Resistance: 1500 MOhm –Km  DC  500V (Between wire and ground)



Applications

-       Voice

-       ISDN

-       10Base T(IEEE 802.3)

-       Fast Ethernet(IEEE802.3)

-       100Vg-AnyLAN(IEEE 802.12)

-       Token Ring(IEEE 802.5)

-       TP-PMD(ANSI X3T9.5)

-       100Base-T Ethernet(IEEE 802.3u)

-       155/622 Mbps ATM

-       1000Base-T

-       550 MHz Broadband video

Standards

-       UL, ETL Verifi ed

-       ANSI/TIA-568-C.2

-       ISO/IEC 11801

-       EN 50173

-       Sản xuất tại Taiwan.
