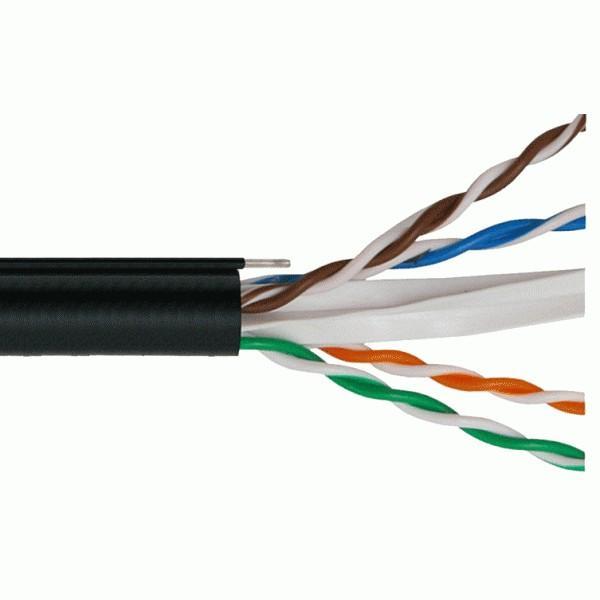

Cáp mạng outdoor Dintek CAT.6 UTP (1101-04013)

-       Cáp mạng CAT.6 UTP 4-pairs dùng ngoài trời, có dây gia cường để treo, móc, 305 mét/cuộn.

-       Outdoor CAT.6 UTP 4-pair solid twisted pair cable.

-       Part number: 1101-04013

CABLE STRUCTURE

-       Twisted pair color code:

o   Pair 1> blue, white/blue ring.

o   Pair 2> orange, white/orange ring

o   Pair 3> green, white/green ring

o   Pair 4> brown, white/brown ring

-       Conductor: 23AWG (0.567±0.005mm)solid annealed copper wire

-       Insulation material: HDPE

-       Insulation thickness: 0.22mm

-       Insulation diameter: 1.01± 0.05mm

-       Number of twist pairs: 4 pairs

-       Self Support System : Galvanized Steel Wire

-       Self Support  Wire thickness :  1/1.2mm

-       Assembly: Arranged in accordance with the structure figure

-       Material of jacket: PE

-       Sheath Thickness: Ave. PE:0.6mm

-       Overall Diameter: Ave. PE:6.4±0.2mm

-       Jacket Unaged Elongation:Min.350%

ELECTRICAL CHARACTERISTICS

-       DC resistance of conductor: max. 9.38Ω/100m at 20°

-       DC resistance unbalance of conductor: max. 5%

-       Insulation resistance:(20°): 1500MΩ-Km DC 500V (wire to ground)

-       Impedance:100Ω±15% (1~250MHz)

-       Dielectric Strength : DC 500V / 1min. or AC 350V / 1min.

APPLICATIONS

-       For Outdoor or Aerial Applications

-       Voice; T1; ISDN

-       10BASE-T (IEEE 802.3)

-       16Mbps Token Ring (IEEE802.5)

-       100VG-AnyLAN (IEEE802.12)

-       100BASE-T Ethernet (IEEE802.3)

-       155/622Mbps 1.2/2.4 Gbps ATM

-       1000Mbps Gigabit Ethernet

-       550MHz Broadband Video

Standards

-       ISO/IEC11801 2nd edition CLASS E

-       ANSI/TIA-568-C.2 Cabling Standard

-       CENELEC EN 50173-1,CENELEC

-       EN 50288-5-1,IEC 61156-5 for horizontal cable

-       Flame retardancy is verified according to IEC 60332-1-2

-       Sản xuất tại Taiwan.
