| Product Parameter | Parameter Description |
| Feature | Fail Secure |
| Lock Body | 270Lx30WX73H(mm) |
| Magnetic Plate | 100Lx25Wx3H(mm) |
| Bolt | 16(length)*16(diameter)(mm) |
| Voltage | DC12V |
| Start Current | 1200mA |
| Standby Current | 200mA |
| LED | Light on indicates locked, light off indicates unlocked |
| Suitable For | Wooden door , metal door , fireproof door , glass door |
| Autolock Time Delay | 0,3,6,9sec |
| Signal Output | Lock signal(NO/NC/COM) |
| Material | 304 stainless steel,wire draw finishing |
| Induction Distance | Within 8mm |
| LED | Light on indicates locked, light off indicates unlocked |
| Weight | 1.8kg |

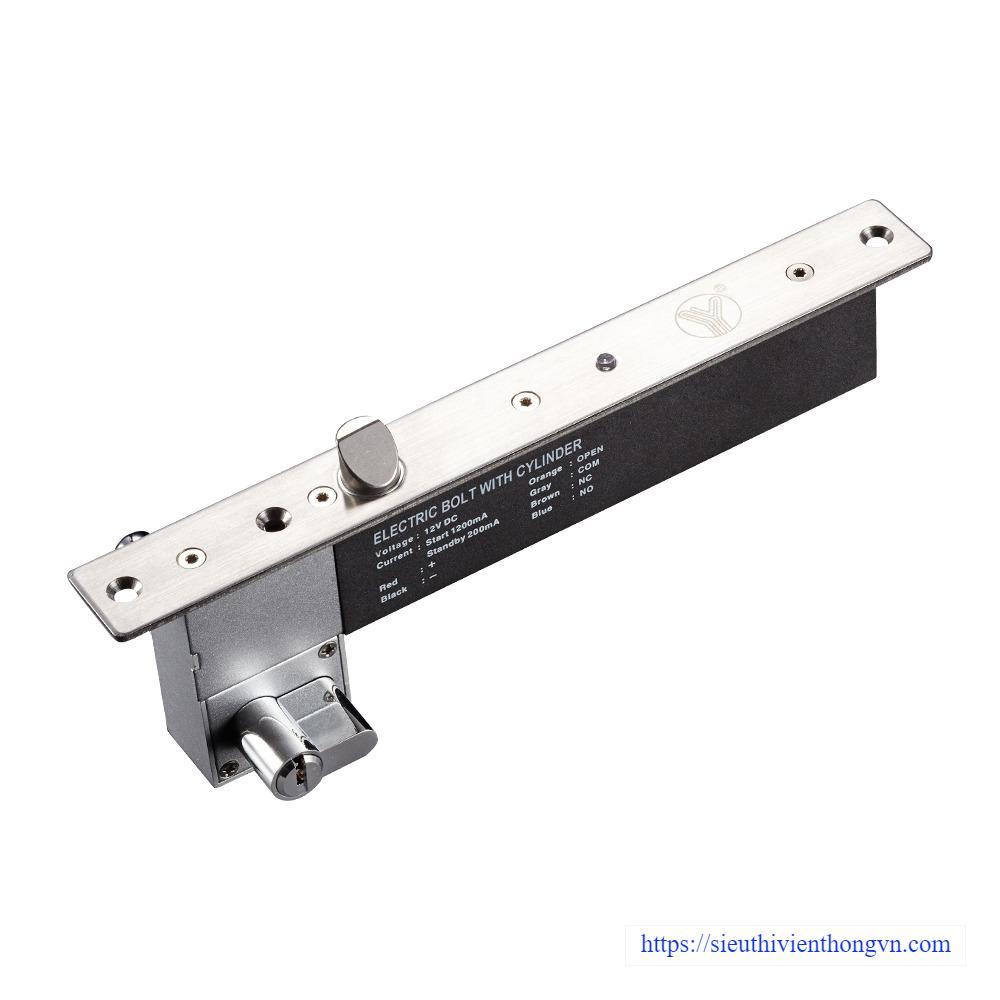

Fail Secure Electric Bolt W/Cylinder YB-630B(LED)
- 2150
- YLI
YB-630B (LED) is an all-metal construction electric bolt .with European-type cylinder and has both electric control and manual control functions. Based on the all-metal linkage parts,It can work at the temperature of 60 ℃ or -40 ℃ .The CNC lathe create the 304 stainless steel Bolt, which can bear with 2000kg holding force.
