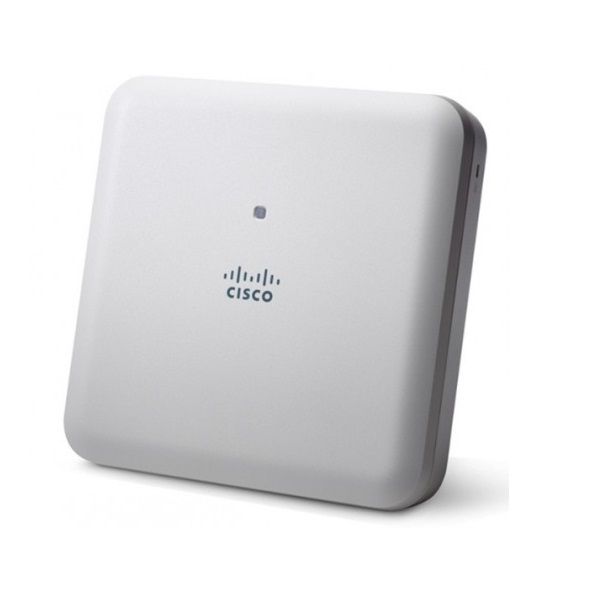

Cisco Aironet AIR-AP1832I-S-K9
- Cisco Aironet AIR-AP1832I-S-K9 support 802.11ac Wave 2; 3x3:2SS; Int Ant; S Reg Domain.
- AIR-AP1832I-S-K9 is one of the Cisco Aironet 1830 Series Access Points.
- Cisco 1830 AP series is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard.
- The 1830 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.
- The model AIR-AP1832I-S-K9 provides S Regulatory Domain and internal antennas.
Specifications
| Part Number | AIR-AP1832I-S-K9 |
| Description | 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, S Regulatory Domain |
| Software | Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points |
| Deployment modes | Centralized, standalone, sniffer, Cisco FlexConnect™, monitor, OfficeExtend, mesh |
| Supported wireless LAN controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller, Cisco Mobility Express |
| Regulatory Domain | S (S regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 11 channels - 5.745 to 5.825 GHz; 5 channels |
| Integrated antenna | 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° |
| Interfaces | 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE), Management console port (RJ-45), USB 2.0 (enabled via future software) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
| Weight | 3.12 lb (1.41 kg) |
| Environmental | Cisco Aironet 1830i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft |
| System memory | 1 GB DRAM 256 MB flash |
| Input power requirements | AP1830: 44 to 57 VDC Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
| Power draw | 15.4W |
- Bảo hành: 12 tháng.
