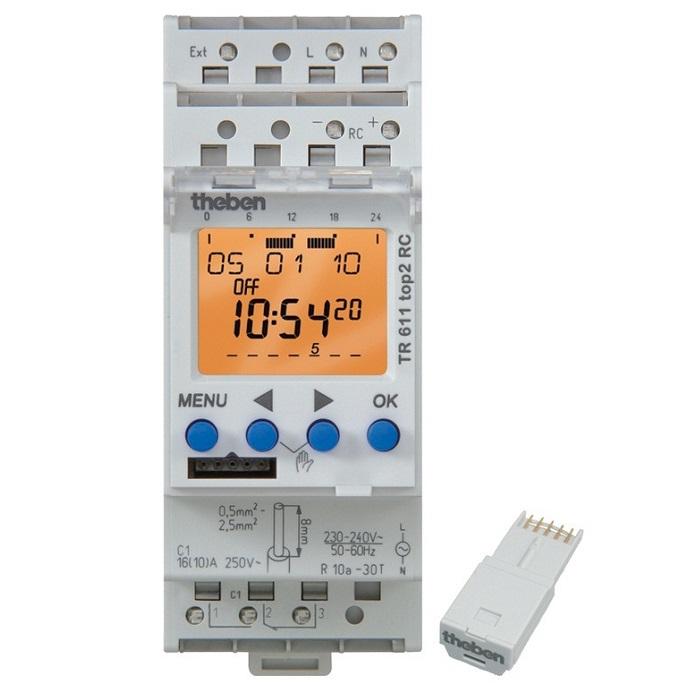

Công tắc hẹn giờ kỹ thuật số THEBEN TR 611 top2 RC
- Digital time switch with weekly program.
- Time synchronisation option via connection of an external DCF or GPS antenna (GPS not with 24V device).
- Additional power unit required for GPS if only one device is connected to the antenna.
- External input.
- Connectable sensors (external selector switch, sequence timer).
- Connectable switches (ON or OFF permanent switching).
- DuoFix spring terminals.
- For 2 conductors each.
- Wire or strand (with or without wire end sleeve).
- Wire diameter: 0.5 - 2.5 mm².
- Button for releasing plug-in connection.
- Text-oriented user guidance in display.
- Preset date and time.
- Fully operable without mains connection.
- 84 memory locations.
- Interface for OBELISK top2 memory card (PC programming).
- Copying programs.
- Storing programs.
- OBELISK memory card included in delivery.
- 10 year power reserve (lithium battery).
- Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices).
- ON-OFF switching times.
- Pulse program.
- Cycle program.
- Switching preselection.
- Permanent switching ON/OFF.
- Timer countdown.
- Integrated operating hour counter.
- Reset option.
- Service function for monitoring maintenance intervals.
- Holiday program.
- 2 random programs.
- Display back light (can be turned off).
- Permanent switching ON/OFF.
- PIN coding.
- Automatic summer/winter time changeover.
- Can be deactivated.
- Date rule options are already stored for Europe, the USA and other countries.
- Own date rule options or changeover around set dates are available.
Specifications
| Model | TR 611 top2 RC |
| Operating voltage | 230 – 240 VAC |
| Frequency | 50 – 60 Hz |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of contact | Changeover contact |
| Opening width | < 3 mm |
| Program | Weekly program |
| Program functions | ON-OFF, Pulse, Cycle |
| Number of channels | 1 |
| External inputs | 1 |
| Number of memory locations | 84 |
| Power reserve | 10 years |
| Switching capacity at 250 V AC, cos φ =1 | 16A |
| Switching capacity at 250 V AC, cos φ =0,6 | 10A |
| Incandescent/halogen lamp load 230 V | 2600W |
| Fluorescent lamp load (conventional) parallel-corrected | 730 VA 80 µF |
| Energy saving lamp 230V | 170W |
| LED lamp < 2 W | 30W |
| LED lamp 2-8 W | 100W |
| LED lamp > 8 W | 120W |
| Fluorescent lamp load (conventional) not corrected | 1000 VA |
| Fluorescent lamp load (conventional) series-corrected | 1000 VA |
| Switching capacity min. | ca. 10 mA |
| Shortest switching times | 1s |
| Time accuracy at 25°C | typical ± 0,25 s/day (quartz) or DCF77/GPS |
| Time basis | Quartz/DCF77/GPS |
| Stand-by consumption | ~1,4W |
| Capacity loss max. | 1,3W |
| Test approval | VDE |
| Type of connection | DuoFix spring terminals |
| Keyboards | 4 touch buttons |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP20 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -30°C … +55°C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
