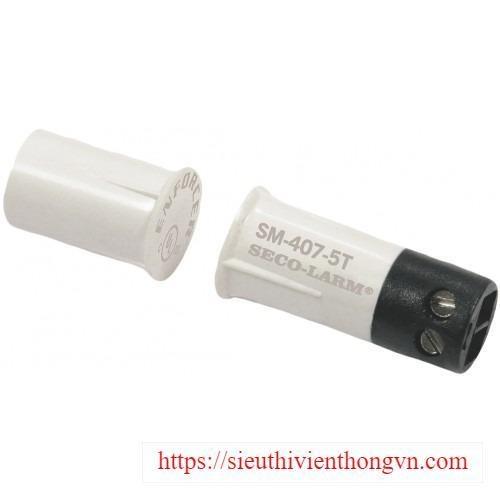

Công tắc từ có dây SM-407-5TQ/W
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 3/4", (19mm) |
| Color | White |
| Material - Case | High-impact ABS plastic |
| Material - Contact | Gold-plated |
| Contacts | Iridium-plated |
| Contact Rating | 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-1/8" x 7/16" x 3/8" (28 x 11 x 9 mm) |
| Magnet Dimensions | 3/4" x 7/16" x 3/8" (19 x 11 x 9 mm) |
| Magnet Type | Rare-earth neodymium |
