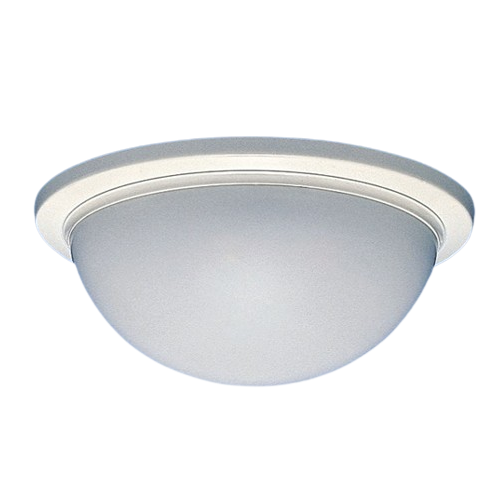

Đầu báo hồng ngoại TAKEX PA-5312(E)
- High performance dual twin element optical unit.
- High density detection area.
- Slight motion detection-selectable twin/quad sensing.
- Self-test function.
- Built-in alarm memory.
- Trouble alarm.
Thông số kỹ thuật
| Model | PA-5312(E) |
| Product type | Passive infrared sensor |
| Detection system | Passive infrared (QUAD) |
| Coverage | Wide angle: 12m (40ft) max. |
| Sensitive zone | 72 (18 pairs) |
| Supply voltage | 9.5 to 30VDC (non-polarity) |
| Current consumption | NC contact: 25mA max. / NO contact: 35mA max. |
| Alarm output | Dry contact relay (NO/NC changeover) Reset: approx. 2 sec, 30V (AC/DC) 0.25A (Protective resistor 3.3Ω) |
| Tamper output | Dry contact relay (N/C) Open when cover or body is detached 30V 0.1A max. |
| Alarm memory | Auto-reset memory: 3 mins. flashing, 47 mins lighting Manual memory: memory disabled/indication/reset control using terminal 8 |
| Slight motion detection | Sensitive zone: 36 pairs |
| Alarm LED (RED) | Blinking (every 0.5sec): Warm-up Lighting (approx. 2 sec): Alarm Blinking (every 0.25sec): Trouble indication Continuous lighting: Trouble alarm (Disabled is LED except trouble indication) |
| Memory LED (YELLOW) | Blinking: Memory activated Lighting: Memory indicated |
| Trouble indication | Alarm contact checking whenever an alrm outputs Operation: Trouble indication |
| Trouble signal | Unit trouble: Monitoring inner circuit and wiring damage Operation: Trouble alarm Low voltage troouble: Monitoring low voltage Operation: Trouble alarm Positioning trouble: monitoring failure to replace view finder Operation: Trouble alarm |
| Ambient temperature | -10°C to +55°C (+14°F to +131°F) |
| Mounting position | Indoor ceiling / wall |
| Wiring connections | Terminals |
| Weight | 250g (8.75oz) |
| Appearance | Body: ABS resin |
- Xuất xứ: Nhật Bản.
- Bảo hành: 12 tháng.
