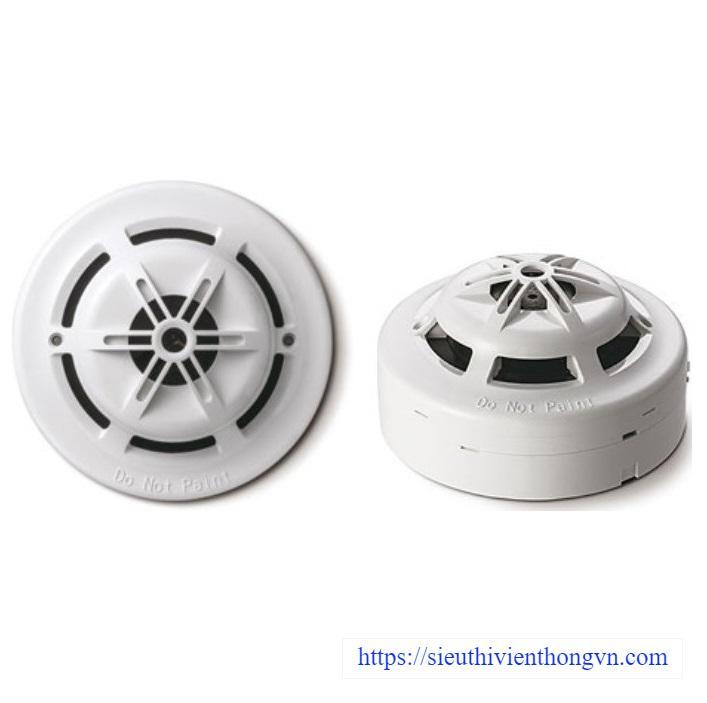

Đầu báo khói và nhiệt HORING Q05-2
- The standard detector is 2-wire. Simple and easy module placement enables wider application and flexible stock control.
- Detector is made of high endurance, solid and colorfast Fire-proof plastic.
- Non-loosening screws on base terminal for easy installation.
- Detector has passed strict EMC test, which greatly eliminates false alarms caused by interference from nearby sources.
- Dual LEDs for 360-degree visibility. Bi-color LED, Stand-by Status: Green; Alarm Status: Red.
Specifications
| Model | Q05-2 |
| Specifications | |
| Voltage Range | 12 ~ 30V DC |
| Alarm Current @24V DC 470Ω | 40mA |
| Standby Current @24V DC 470Ω | under 85μA |
| Sensitivity Setting | Comply to EN54 |
| Thermal Setting | 58°C |
| Ambient Temperature | -10°C ~ +55°C |
| Material | Fire-proof plastic |
| Dimensions | 102mm(Dia.) x 54mm(H) |
| Weight | 130g |
| Color | White |
| Effective alert area | |
| Building Height | Area Covered |
| Under 4M | 150 M2 |
| 4 ~ 20M | 75 M2 |
- Bảo hành: 12 tháng.
